Xpelair LVCV4SR Simply Silent dMEV Extractor Fan With Humidistat SELV Low Voltage

Xpelair LVCV4SR Description

The Xpelair Contour LVCV4SR is a white SELV low voltage continuous running de-centralised MEV axial fan designed to offer exceptionally low noise levels, whilst delivering a constant volume of extracted air to eliminate humidity, condensation and mould growth in bathrooms, shower rooms, cloakrooms, toilets and kitchens.

Features Xpelair’s intelligent Adaptiflow™ sensing to deliver constant volume performance through a unique sensor housed within the duct. This smart technology works cooperatively with the product’s active humidistat, sensing changes in airflow, adapting the fan speed intelligently to maintain constant volume of extracted air.

The fans airflow can be set at install to either bathroom or kitchen mode, by operating in efficient trickle ventilation mode at 5 l/s or 8 l/s and boosting as required up to 18 l/s, allowing the fan to be used as a whole house dMEV solution.

The LVCV4SR is designed specifically for safe installation directly in or over the splash area zone 1. Supplied with a 24V SELV transformer, to be positioned out of reach of any person using the bath or shower.

Features the advanced Ghost Air Movement Technology to deliver near-silent running. Available with either square or round facia to suit installation requirements.

The small and sleek design of the contour is accompanied by So Simple installation to offer a hassle free setup, suitable for wall, ceiling, panel and window fitting.

Particularly suited to new-build and high-end specifications, the Contour LVCV4SR features a datalogger designed to help landlords and local authorities avoid damage to their housing stock through condensation and mould.

Xpelair LVCV4SR Features

• Xpelair LVCV4SR 078384 Contour SELV continuous running de-centralised MEV axial fan
• White finish
• IPX4 rated
• 24V SELV transformer for safe installation in zone 1
• Suitable for both kitchen and bathroom installation - selectable at installation
• 3 speed settings, including trickle and boost
• Wall, ceiling, panel and window fitting
• Integral humidistat adjustable from 50-90% RH
• Adjustable overrun timer - 30 sec - 30 minutes
• Intelligent Adaptiflow™ Sensing intelligently adjusts the speed of the fan, ensuring the correct airflow
• Includes a datalogger designed to help landlords and local authorities
• Ghost air movement technology for near-silent running
• Noise Level 28dBA at 3m

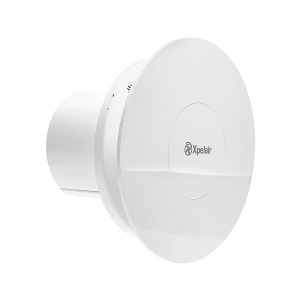

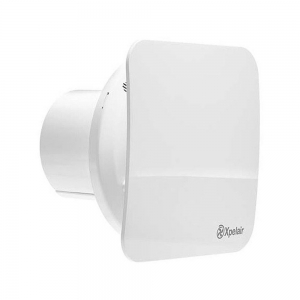

• Supplied with both circular and square facias
• Easy cleaning thanks to twist and turn baffle
• Extraction Rate 18-65m³/hr
• Radial screw slots for easy alignment of back plate prior to final fixing
• Features a level line at bottom of back plate for ease of alignment
• Large cable access for ease of wiring
• Complies with building regulations Part F and L for bathroom and kitchen installations
• Dimensions Square Fascia: Height: 180mm | Width: 180mm | Spigot DiaØ : 100mm
• Dimensions Round Fascia: DiaØ: 200mm | Spigot DiaØ : 100mm
