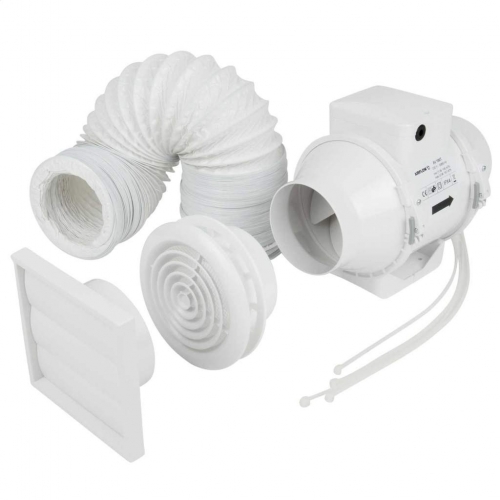

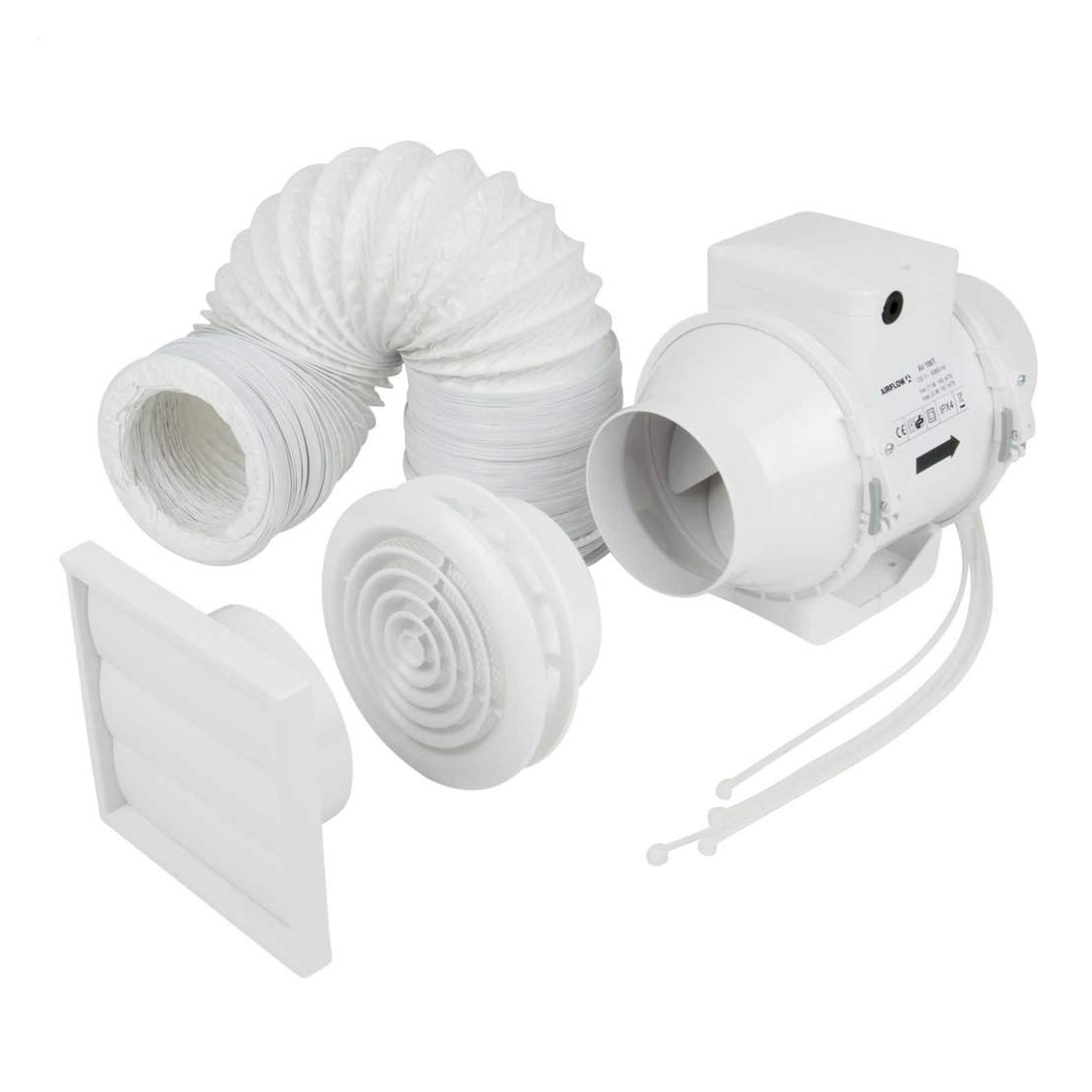

Airflow 9041407 AV100T Aventa White 100mm IPX4 In-Line Timer Shower Fan Kit With Ducting & Grilles

Airflow 9041407 Description

The Airflow 9041407 Aventa AV100T Shower Kit is a high-performance 100mm in-line mixed-flow extractor fan kit designed for effective ventilation of bathrooms, shower rooms, en-suites and other moisture-prone areas. Combining the pressure performance of a centrifugal fan with the compact dimensions of an axial design, the Aventa provides powerful remote extraction while remaining suitable for installation in loft spaces, cupboards and service shafts.

Featuring two-speed operation, the AV100T delivers airflow rates of 145m³/h on low speed and 187m³/h on high speed, allowing excellent extraction performance from a compact 100mm fan. The integrated adjustable overrun timer keeps the fan operating for a preset period after switching, helping clear residual moisture and humid air. The Aventa can be used with flexible or rigid duct runs of up to 6 metres, while its IPX4 rating, thermally protected motor and supplied mounting bracket make it a dependable choice for residential ventilation. Supplied as a complete shower fan kit, the Airflow 9041407 offers a practical solution where powerful, remotely mounted extraction is required.

Airflow 9041407 Features

• Model: AV100T Shower Kit
• Product type: In-line mixed-flow shower extractor fan kit
• Duct diameter: 100mm / 4"
• Two-speed operation: Low / High
• Airflow: 145m³/h low speed / 187m³/h high speed
• Maximum airflow: 187m³/h / 52 litres per second
• Power consumption: 21W low / 33W high
• Current: 0.11A low / 0.21A high
• Noise level at 3m: 27dB(A) low / 36dB(A) high
• Adjustable overrun timer
• Suitable for duct runs up to 6 metres
• Compatible with flexible and rigid 100mm ducting
• Mixed-flow design provides high pressure and powerful extraction
• Suitable for remote mounting in lofts, cupboards and service shafts
• Helps remove moisture, humidity, odours and airborne pollutants
• Suitable for bathrooms, shower rooms, en-suites, utility rooms and other internal spaces requiring extraction
• IP rating: IPX4
• Thermally protected motor
• Mounting bracket supplied
• Motor and impeller can be accessed without dismantling the ductwork
• Fan dimensions: 246mm length x 190mm width
• 100mm nominal connection
• Supply: 230V
• Complies with applicable UK Building Regulations for ventilation
• 3-year manufacturer warranty
• Airflow quality assured to ISO 9001
