Airflow 9041408 AV100T Aventa White 100mm IPX4 In-Line Timer Shower Fan Kit With LED Light, Ducting & Grilles

Airflow 9041408

The Airflow 9041408 Aventa AV100T 100mm In-Line Shower Fan Kit with LED Light and Timer combines powerful two-speed extraction with an integrated cool white LED shower light. Delivering up to 187m³/h airflow, it provides an effective ventilation and lighting solution for bathrooms, shower rooms and en-suites.

Order code: 9041408
Manufacturer: Airflow
GTIN: 5019009307077

£ 86.94 incl. VAT
£ 72.45 excl. VAT

Trade Price: £ 240.84
You SAVE
£ 168.39 or 70%
Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Airflow 9041408 Description

The Airflow 9041408 Aventa AV100T Shower Fan Kit is a complete 100mm in-line ventilation solution designed to remove moisture, humidity, odours and airborne pollutants from bathrooms, shower rooms and en-suites. Its compact mixed-flow fan combines strong pressure performance with quiet operation, making it particularly suitable for remote mounting in loft spaces or service shafts where longer duct runs are required.

Offering two-speed operation, the Aventa AV100T delivers extraction rates of 145m³/h on low speed and 187m³/h on high speed, with sound levels of just 27dB(A) and 36dB(A) respectively at 3 metres. An adjustable 2-30 minute overrun timer allows continued extraction after switching, helping remove residual moisture from the room.

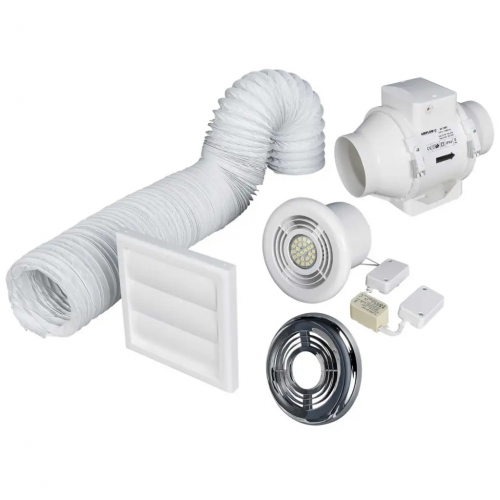

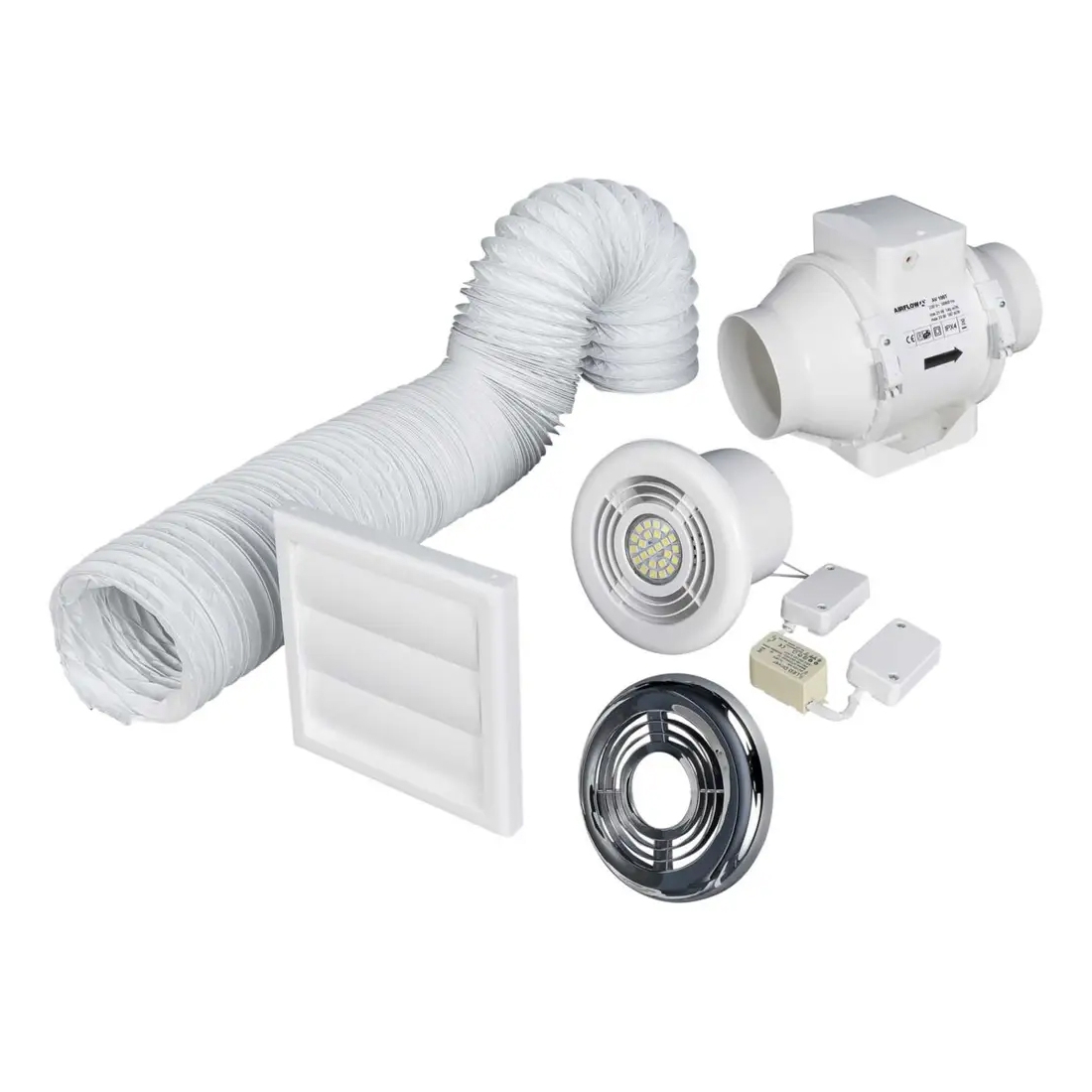

The kit also incorporates a 4W 12V cool white LED shower light producing 220 lumens, combining extraction and illumination within a neat ceiling-mounted grille. Supplied with 6 metres of flexible ducting, LED light, chrome and white grilles, external grille and fixing ties, the Airflow 9041408 provides a comprehensive solution for residential shower ventilation. Its IPX4-rated, double-insulated design and 3-year manufacturer warranty further enhance its suitability for dependable bathroom ventilation.

Airflow 9041408 Features

  • Model: AV100T Shower Kit + Light
  • Product type: In-line mixed-flow shower fan kit with LED light and timer
  • Duct diameter: 100mm / 4"
  • Two-speed operation: Normal and boost
  • Airflow: 145m³/h low / 187m³/h high
  • Airflow: 40l/s low / 52l/s high
  • Power consumption: 21W low / 33W high
  • Running current: 0.11A low / 0.21A high
  • Sound pressure at 3m: 27dB(A) low / 36dB(A) high
  • Adjustable overrun timer: 2-30 minutes
  • Designed for longer duct runs up to 6 metres
  • Compact mixed-flow design provides high pressure with low noise
  • Can be used to supply or extract air
  • Fan can be remotely mounted in loft spaces or service shafts
  • Motor and impeller can be accessed without dismantling the ductwork
  • LED shower light: 4W
  • LED light output: 220 lumens
  • LED colour: Cool White
  • LED supply: 12V DC
  • Replacement LED lamp: Airflow 90001384
  • Replacement lamp specification: MR16, 4W, 12V AC/DC, 6000K
  • IP rating: IPX4
  • Electrical class: Double insulated
  • Fan supply: 230V / 1 phase / 50Hz
  • Construction: ABS
  • Fan dimensions: 190mm (H) x 246mm (W) x 126mm (D)
  • Weight: 1.5kg
  • Supplied with 6m flexible ducting
  • Supplied with LED light
  • Supplied with white and chrome grilles
  • Supplied with external grille and fixing ties
  • Chrome bezel 9041480 available separately
  • Complies with applicable Building Regulations Approved Document F
  • Suitable for bathrooms, shower rooms, en-suites and toilets
  • 3-year manufacturer warranty
