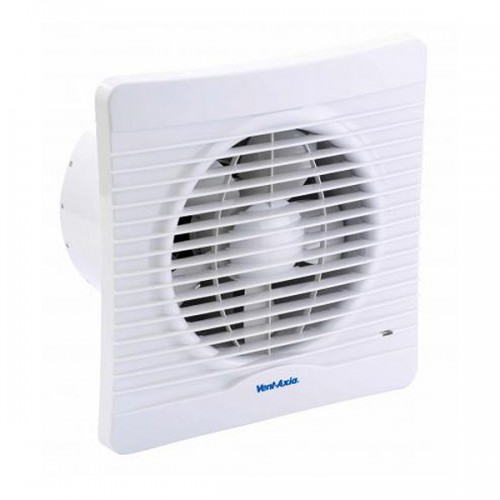

Vent-Axia 454059 Silhouette 150X White Single Speeed Low Profile Panel Axial Fan With Electric Backdraught Shutters For Remote Switching 240V Height: 223mm | Width: 223mm | Spigot DiaØ : 150mm

Vent-Axia 454059 Description

Silhouette 150X - Single speed 150mm kitchen fan with neon running light and electric backdraught shutter Stock Ref. No. 45 40 59

Features & Benefits:

• Stylish ultra low profile grille
• Downstream airflow guide vanes for improved pressure development
• Ball bearing motors for vertical or horizontal application
• Wall kit design ensures installed performance to meet Building Regulation Document F requirements
• DEMKO Approved

Typical Specification

Supply and install a Silhouette axial fan for installations in walls or ceilings, with electric backdraught shutter on the 150mm version.

The fan performance should meet the Building Regulations (Document F) Requirements 60 l/s for kitchens (30 minute timer overrun model for internal WC’s). The profile should be no more than19mm thick.

The motor should be a ball bearing motor for installation at any angle and fitted with Standard Thermal Overload Protection (S.T.O.P.). The fan should be DEMKO Approved.

FAQs Answered:

• Integral humidity and timer controls
• 240V versions only
• Suitable for wall and panel mounting only
• Can be installed at any angle
• If ceiling mounted 3m max. of ducting should be used with a condensation trap
