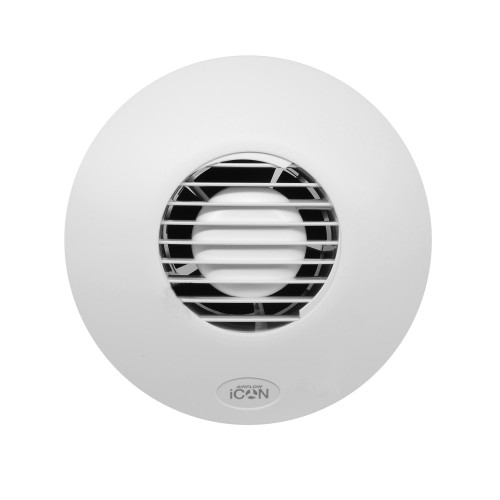

Airflow 72683701 iCON15S 197mm Low Profile SELV Axial Extractor Fan With Iris Shutter

Airflow 72683701 Description

The Airflow iCON15S SELV 12V low voltage axial fan is quiet, powerful and designed with efficiency in mind. Suitable for recessed or surface mounting in walls or ceilings into Zone 1 (and higher) in toilets, en-suites, shower rooms and bathrooms.

Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. Also supplied with a stylish, narrow contour skirt for surface mounting if preferred. This great looking axial extractor fan which thanks to its eye-catching 'opening iris' shutter has become a modern design classic.

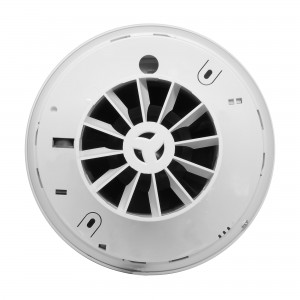

The Airflow iCON15S quiet, powerful axial fan has been designed with simplicity in mind. The 12V DC fan conveniently has its controls in the fan and not the transformer. A quick, core drilled hole enables immediate fixing of the iCON15S. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces. The circular design means no squaring up is required.

The iCON15S is ductable up to 4m meaning you can install it right above the shower or bath and duct through the loft or ceiling void, thus extracting steam at source.

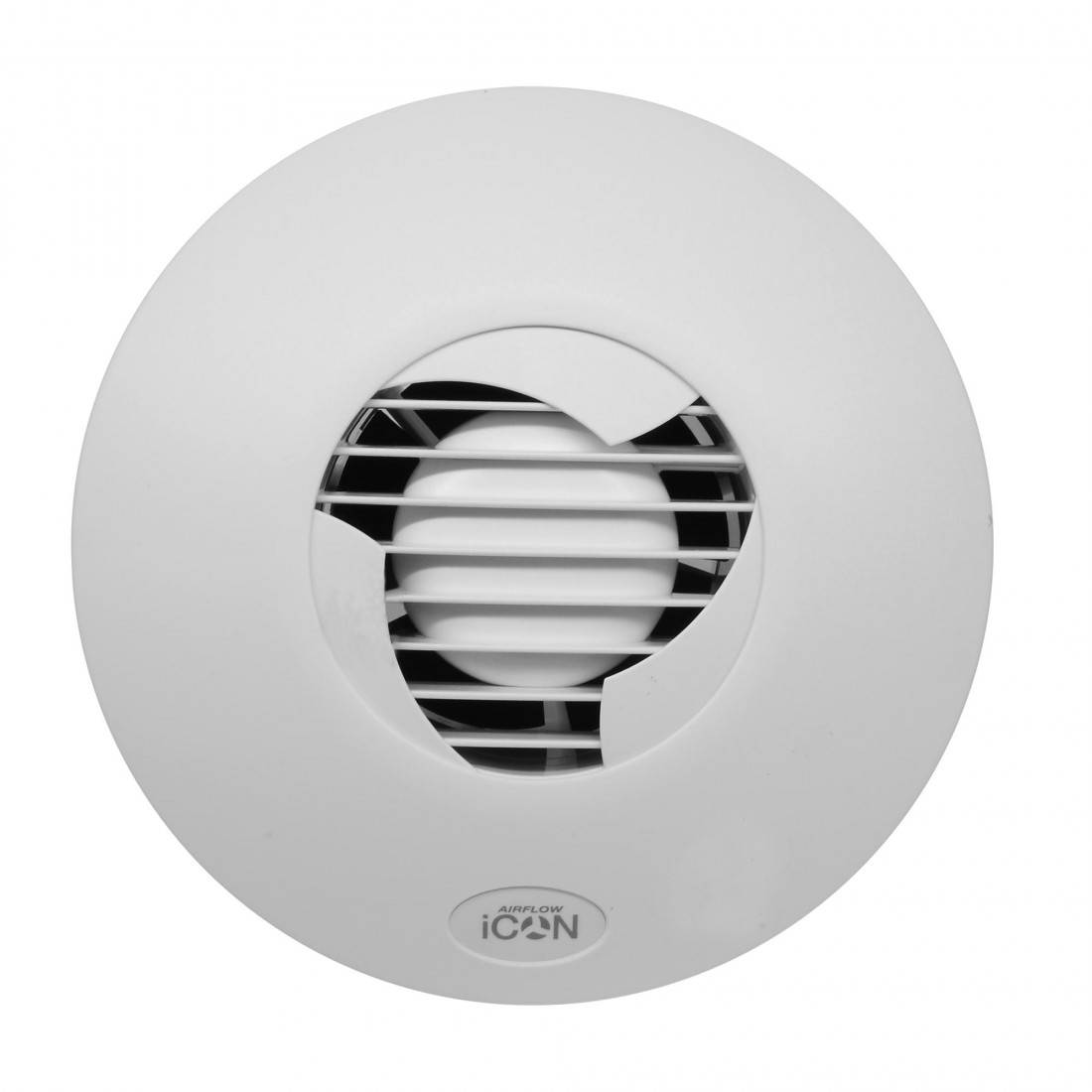

Tiling is a breeze with the circular cover flange, reducing the need to make good. One wipe and the cover is clean. The unique iris shutter, prevents backdraughts, operates silently and helps reduce noise ingress.

The Airflow iCON15S SELV fan is very powerful. With an extract rate of 21.9 litres a second (78.84m³/hr), it meets the building regulations for toilets, en-suites, shower rooms and bathrooms - and it does this using only 7.5W power.

The Airflow iCON15s is supplied for remote switching and may be wired into the light switch or separate remote switch for basic on / off manual switching. However, its functionality may be enhanced through the use of optional 'snap-in' control modules which are quick to fit and wire. Modules include Pullcord, Timer, Humidity or Motion Sensing operation.

Choice of Silver, Sandstone, Polished Chrome & Anthracite covers.

Airflow 72683701 Features

• Quiet, stylish, slim and unobtrusive in wall/ceilings, surface/recessed mounting
• The iCON15S is supplied for remote switching
• Surface or recessed mounting
• 100mm (4’’) axial fan with 12V DC transformer
• Interchangeable control modules match fan to installation
• Flow rate up to 21.9 l/sec (78.84m³/hr)
• Power consumption only 7.5 watts
• Ductable for short runs up to 4m.
• Unique iris shutter, prevents back draughts, operates silently and helps reduce noise ingress.
• Low energy, quiet in use
• Complies with latest Building Regulations
• Tiling is a breeze with the circular cover flange, reducing the need to make good.
• Upgrade your cover to colour to match décor - choice of Silver, Sandstone, Chrome & Anthracite
• IPX4 Protection
• Three year ‘no quibble’ guarantee
