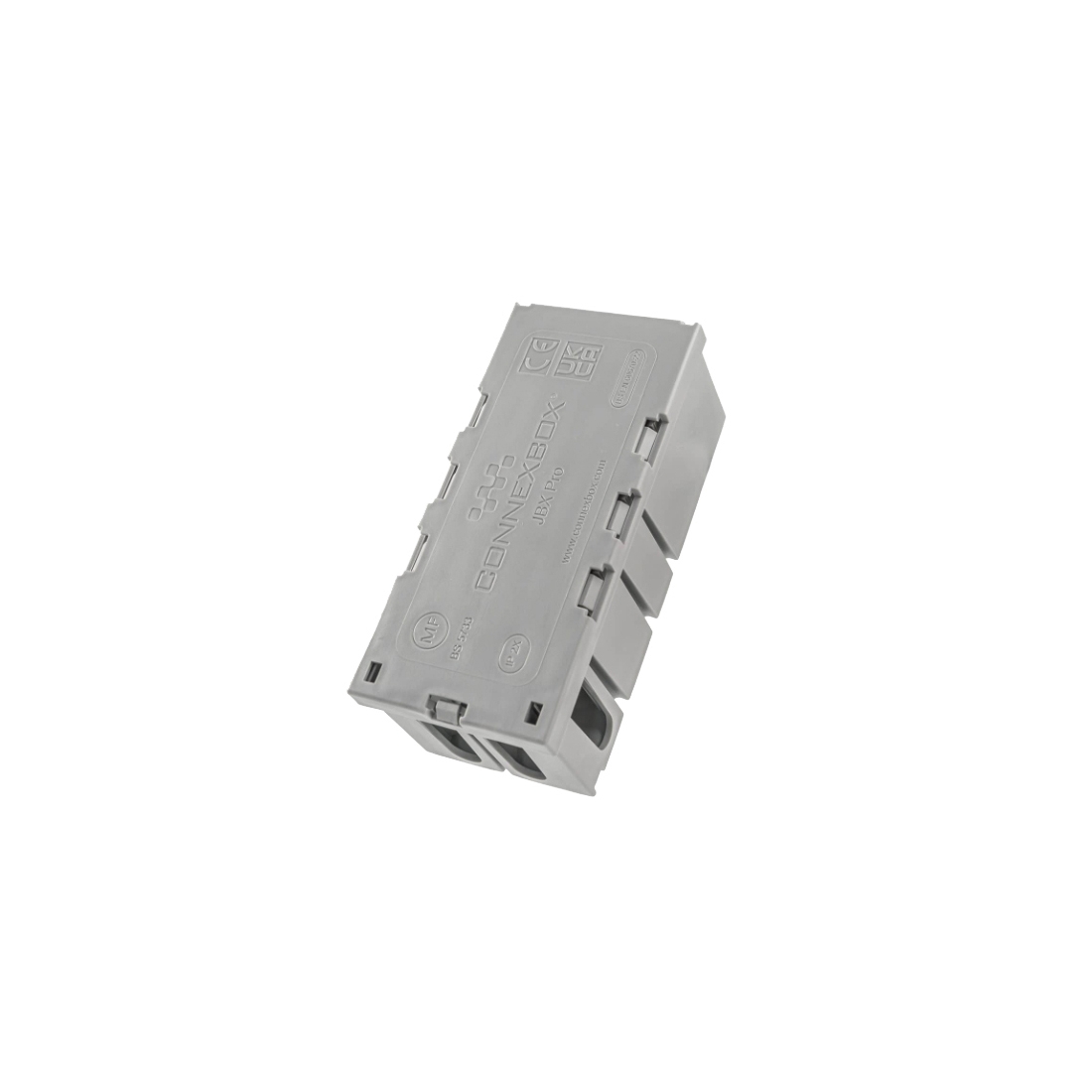

Connexbox CBP-3016 JBX Pro Grey (Pack 10) Electrical Junction Box For Type 221 Wago Connectors
The Connexbox CBP-3016 JBX Pro Junction Box is a compact, high-capacity electrical enclosure designed for use with WAGO 221-4xx series connectors. Featuring configurable cable grippers, increased connector capacity and flexible cable entry, it provides a fast and secure solution for professional power and lighting connections.
Order code: CBP-3016
Manufacturer:
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Connexbox CBP-3016 Description
The Connexbox CBP-3016 JBX Pro is an advanced electrical junction box developed to give installers greater capacity and flexibility when using WAGO 221-4xx lever connectors. Its four connector receptacles can accommodate up to eight three-way connectors, supporting a maximum of 24 individual conductor connections, making it suitable for more complex power, lighting and control applications.
A key feature of the JBX Pro is its multi-position cable gripper system, which can be configured to securely accommodate cables with overall diameters from 3mm to 10mm. Additional cable entry points provide greater freedom when arranging cables within confined spaces, while the compact enclosure measures just 113 x 51 x 42mm. Rated at 450V / 32A and suitable for conductor sizes from 0.14mm² to 4.0mm², the CBP-3016 combines high connection capacity with an installer-focused design. The enclosure can also be configured for BS 5733 Maintenance Free applications when used with the appropriate approved WAGO connectors, providing a versatile junction box solution for professional electrical installations.
Connexbox CBP-3016 Features
- Product type: Electrical junction box / connector enclosure
- Designed for use with WAGO 221-4xx series connectors
- Electrical rating: 450V / 32A
- Conductor capacity: 0.14mm² to 4.0mm²
- Cable diameter: 3mm to 10mm
- Supports up to 24 individual conductor connections
- Four connector receptacles for increased connection capacity
- Can accommodate up to 8 x three-way WAGO 221 connectors
- Multi-position removable cable grippers provide adjustable clamping for different cable sizes
- Additional cable entry points provide greater flexibility when arranging wiring
- Compact design suitable for power, lighting, smart-home and other electrical connection applications
- IP2X rated
- Dimensions: 113mm (L) x 51mm (W) x 42mm (H)
- Complies with BS EN 60670-22 requirements for connecting boxes and enclosures
- Can be configured to BS 5733 Maintenance Free (MF) requirements when used with permitted WAGO 221-412, 221-413 or 221-415 connectors and installed accordingly
- Compatible with the optional Connexbox JBX Pro dual-angle mounting bracket
- Designed and manufactured in the UK
