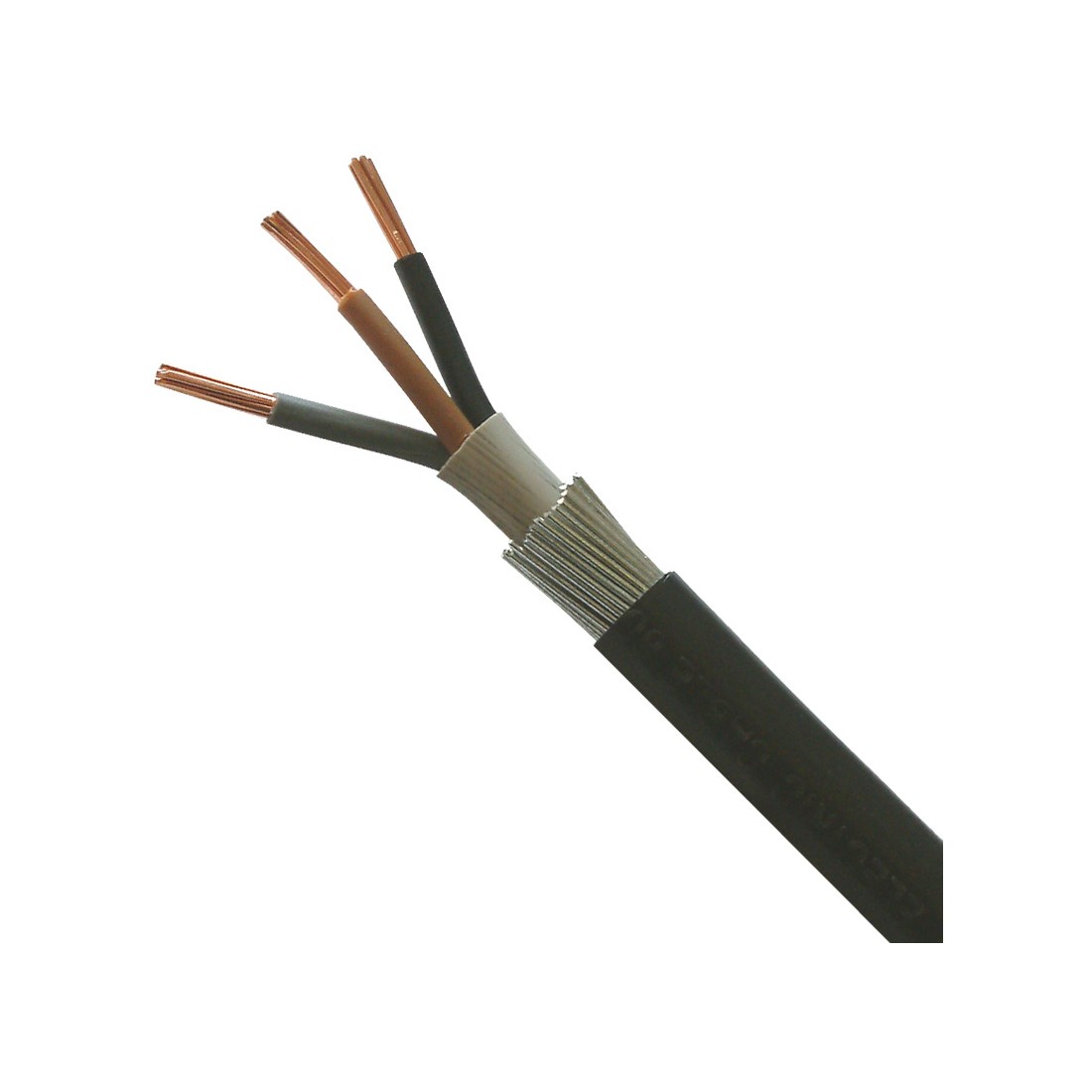

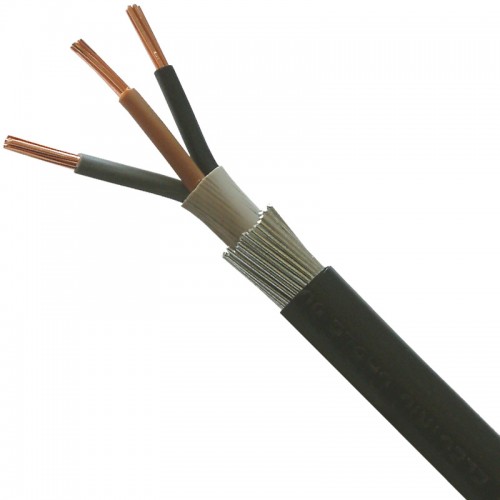

6943X10A BASEC Approved 6943X 10mm 3 Core Steel Wire Armoured Cable (priced per metre)

BASEC Approved Cable 6943X10A Description

The 6943X10A cable features 3 cores with a conductor diameter of 10mm². It has a current rating of 58A. The cable is reinforced with galvanised steel wire armouring, offering exceptional mechanical protection against physical damage. The outer sheath is made of PVC, providing additional protection and resistance.

The 6943X10A 10mm 3 core swa cable adheres to strict quality and safety regulations. It is certified to meet BS5467 and IEC 60502 standards. The conductors are classified as Class 2 plain stranded copper, conforming to BS EN 60228:2005 standards (formerly BS6360). Standard colours: cores - grey, blue & brown and sheath black. With a voltage rating of 600/1000 volts and a temperature rating ranging from 0°C to +90°C, this cable is suitable for a wide range of electrical installations.

The 6943X10A steel wire armoured cable combines high-quality materials and rigorous standards to provide a reliable and durable solution for electrical installations, ensuring safety and efficiency in both residential and industrial applications.

6943x 10mm SWA Cable Features

• Application: Auxiliary control, power networks and other mains supply wiring including underground and external applications.
• Type: 6943X
• Number of Cores: 3
• Conductor Diameter: 10mm²
• Length: Cut to length by the metre
• Insulation: PVC (Polyvinyl Chloride)
• Conductors: Stranded Copper Conductor
• Insulation: XLPE (Extruded Cross-Linked Polyethylene)
• Bedding: PVC (Polyvinyl Chloride)
• Armouring: Galvanised Steel Wire Armour
• Outer Sheath Colour: Black
• Core Colours: Brown, Black & Grey
• Earth: In Armouring
• Current Rating: 58A
• Max Voltage: 600/1000V
• Certified to BS5467, IEC 60502
• Temperature Rating: 0°C to +90°C.
