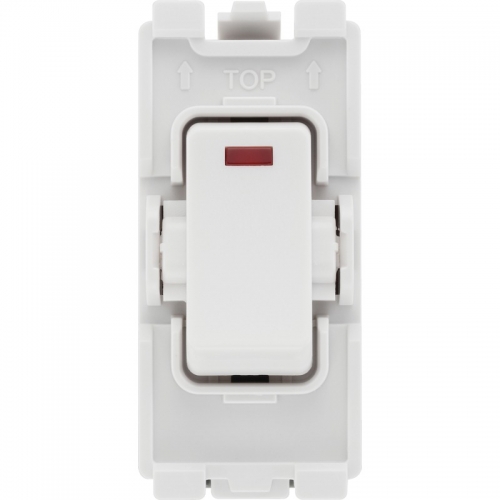

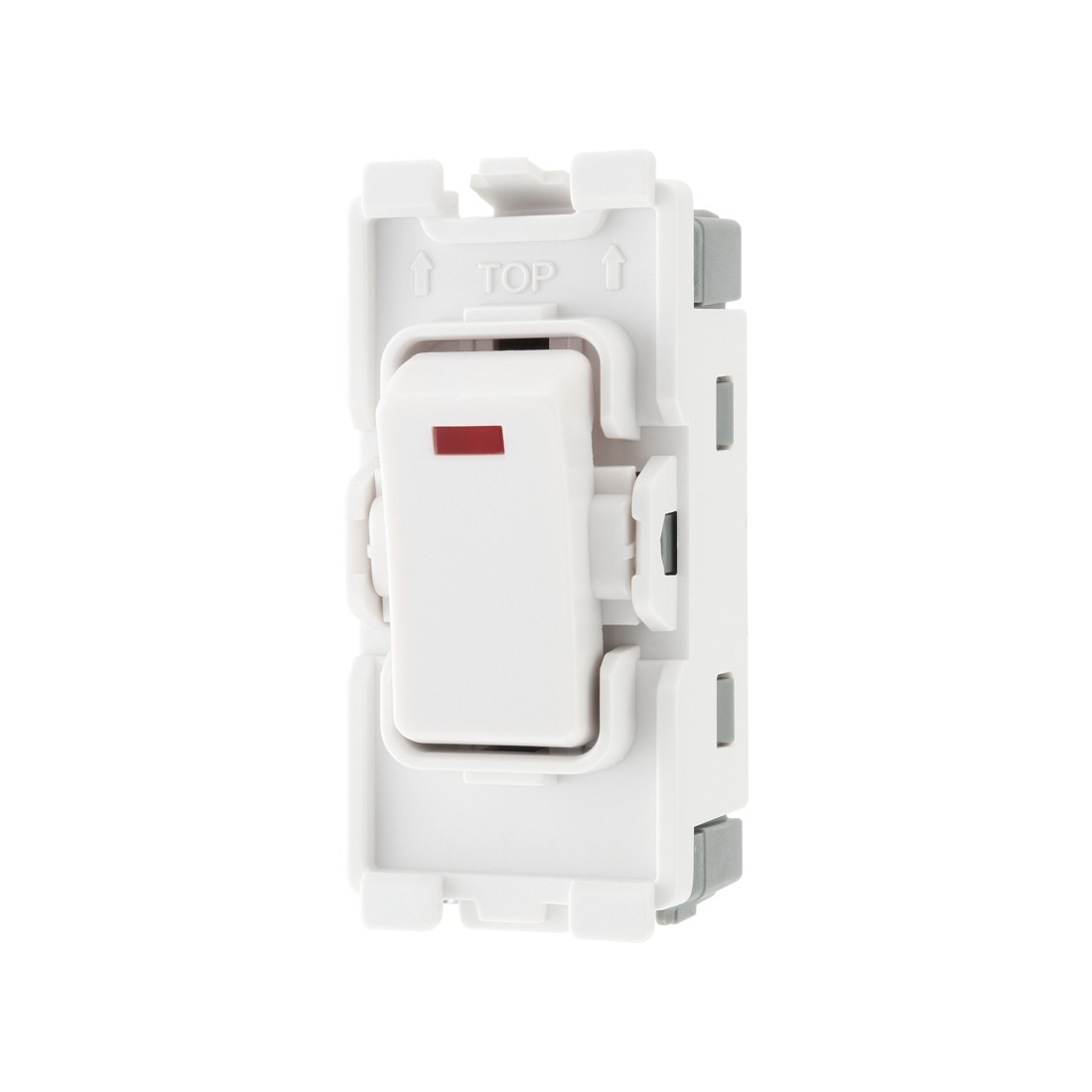

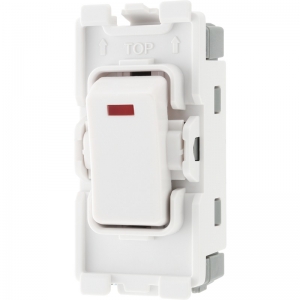

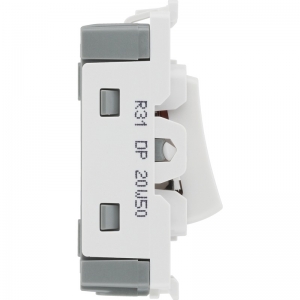

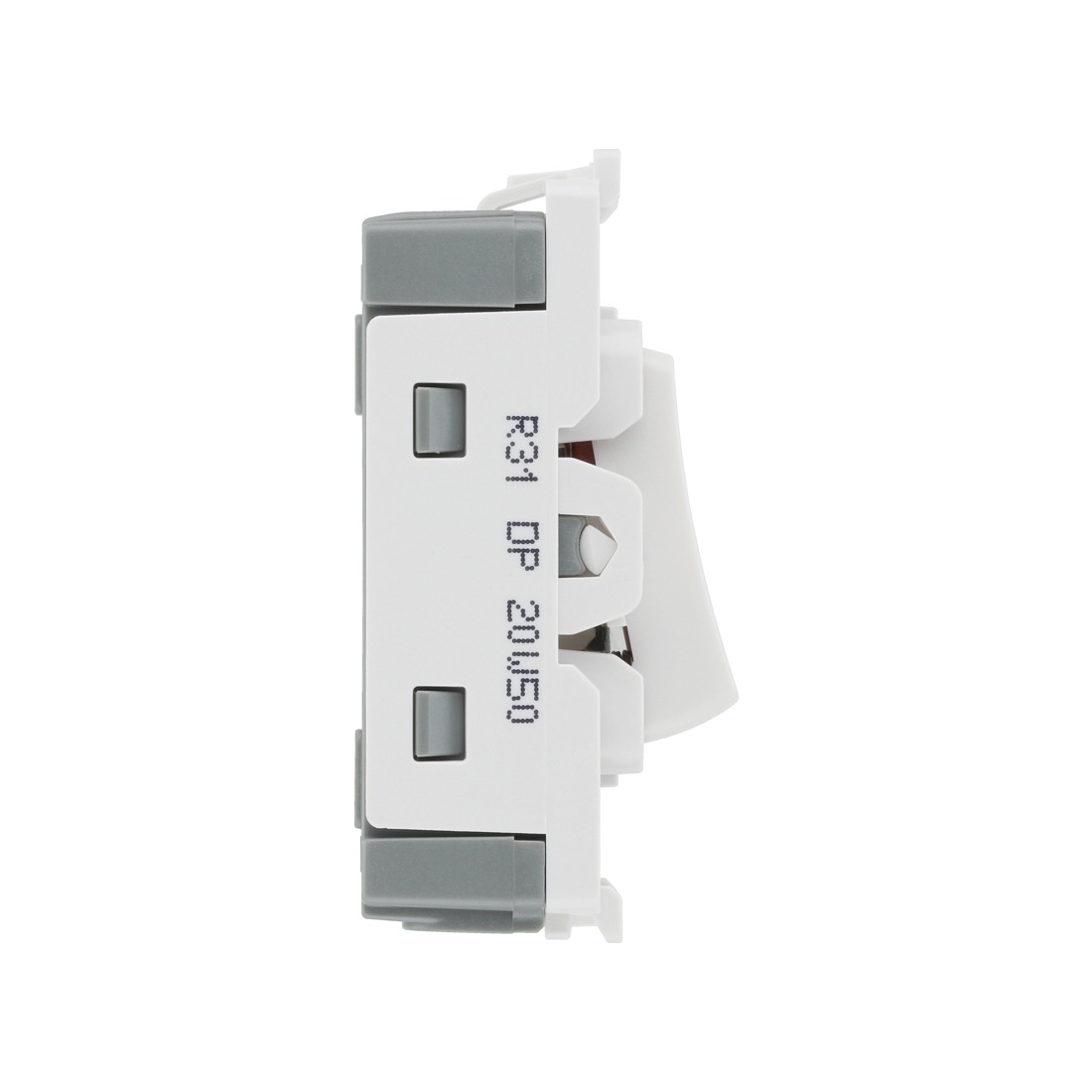

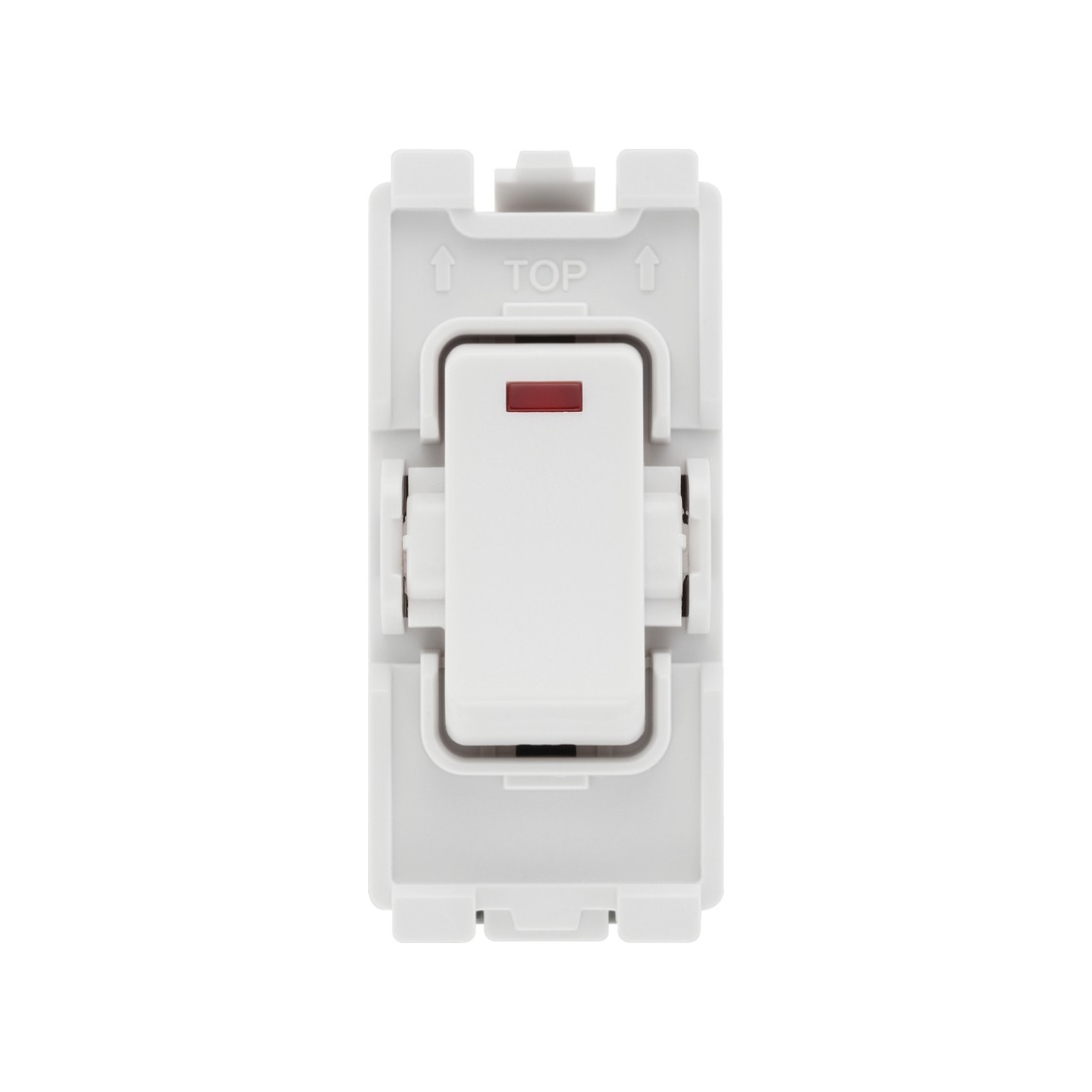

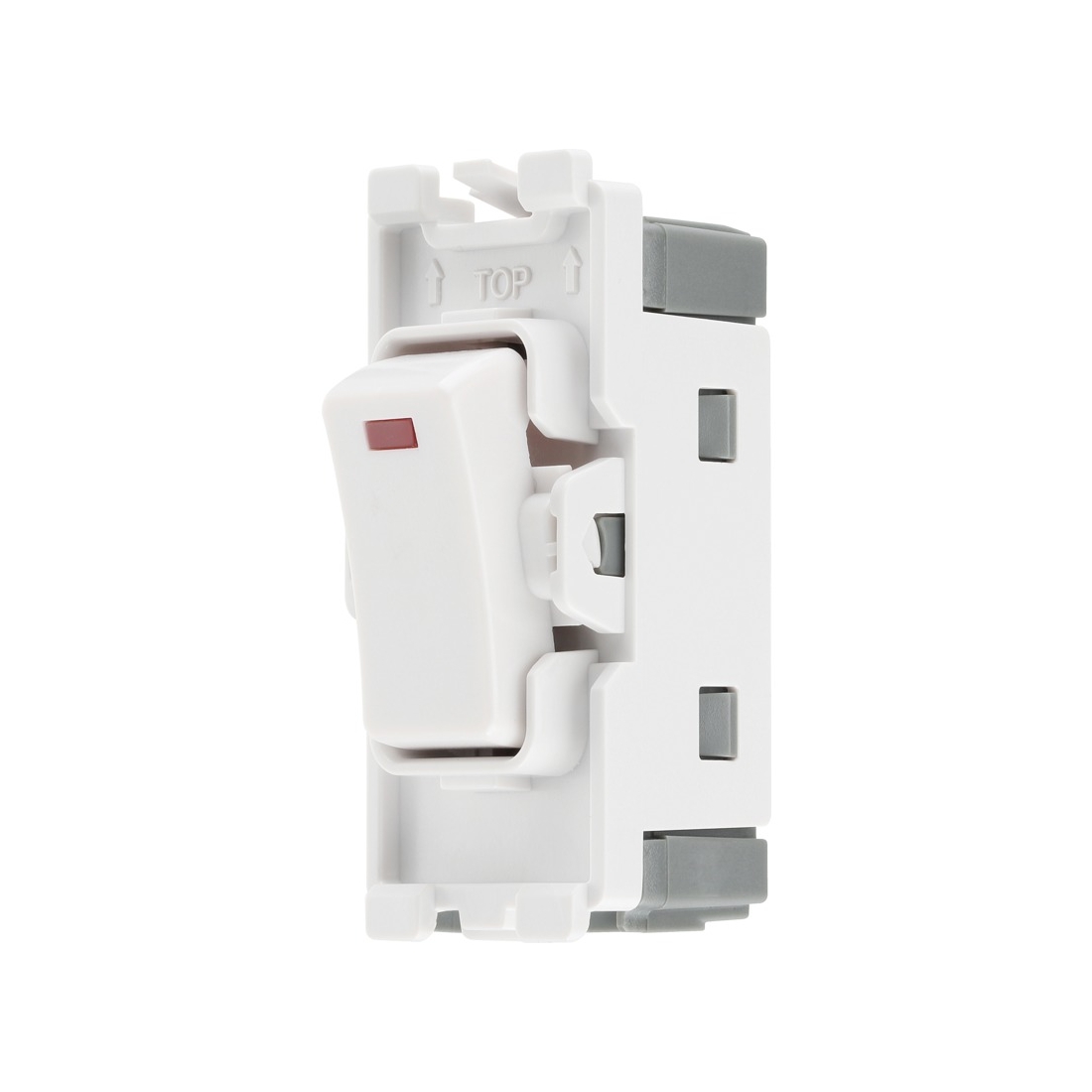

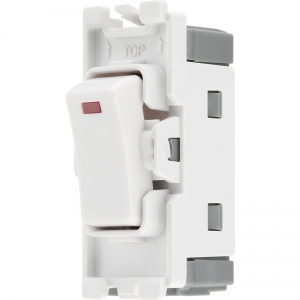

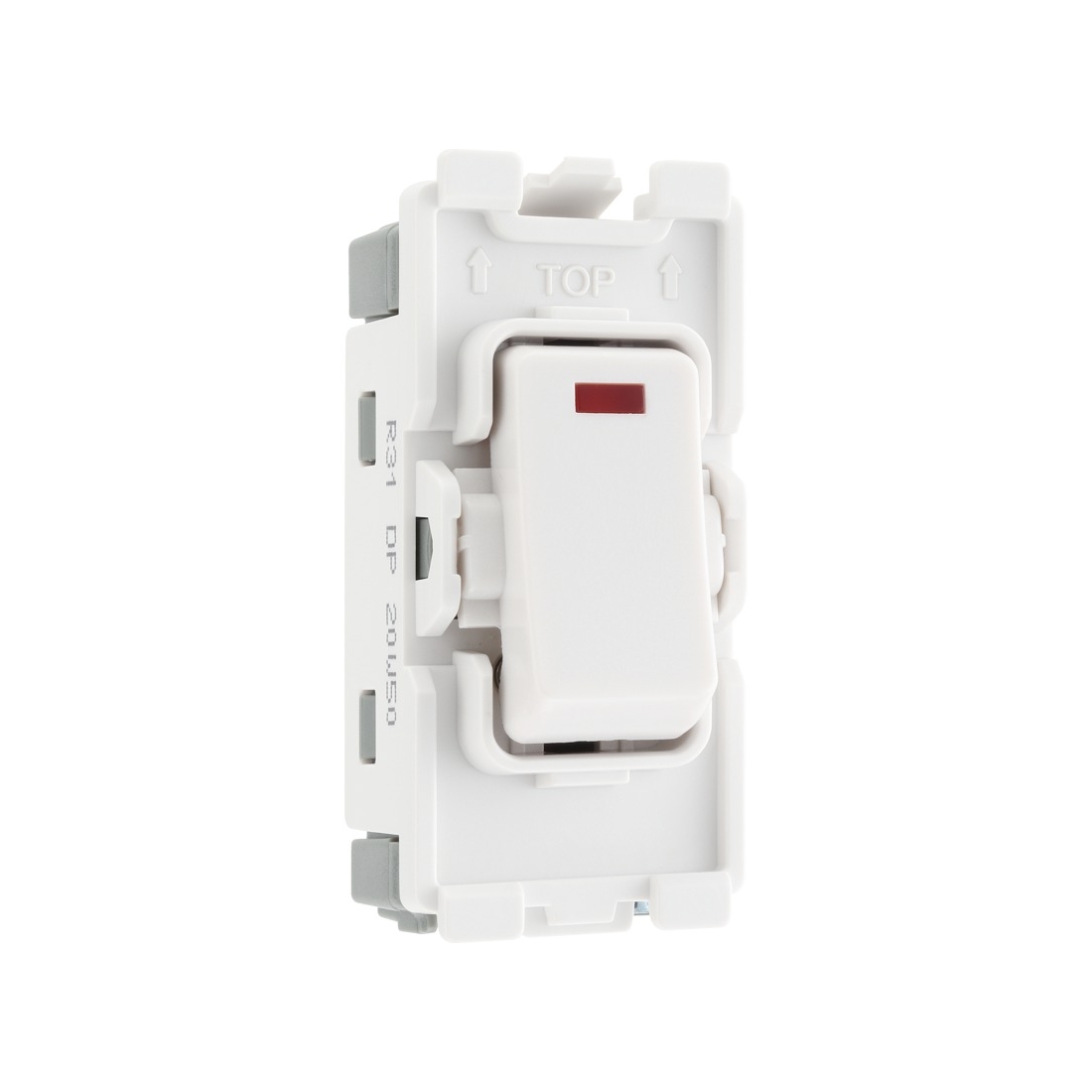

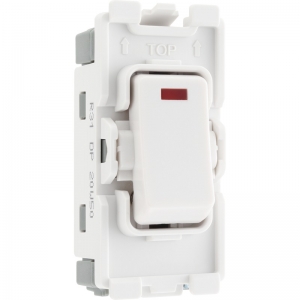

BG Nexus Grid R31 20Ax White Double Pole Grid Switch Module with Neon

BG Electrical R31 Description

The BG Electrical Nexus Grid R31 is a white 1 module 20Ax double pole grid switch with neon that is ideal for any modern home or office installation.

A stylish and slim product with rounded corners has no visible plastic around the edges once installed into the grid frontplate.

Installed using a simple secure 'locate and clip' fitting to grid frame approach. Delivered with captive backed out terminal screws for fast installation.

Manufactured in Urea with anti-microbial properties, it complies with BS EN 60669-2-1 .

Please note when purchasing: This new style product (starting with the letter 'R') is not compatible with the previous products (starting with the letter 'R').

BG Electrical R31 Features

• BG Electrical R30 White 1 module double pole grid switch
• 20A 20AX inductive rated
• With neon indicator
• Voltage: 250V
• Produced in Urea with anti-microbial properties
• Module to be installed with Grid frame and plate
• Simple secure 'locate & clip' fitting to grid frame
• No visible plastic around the rocker switch

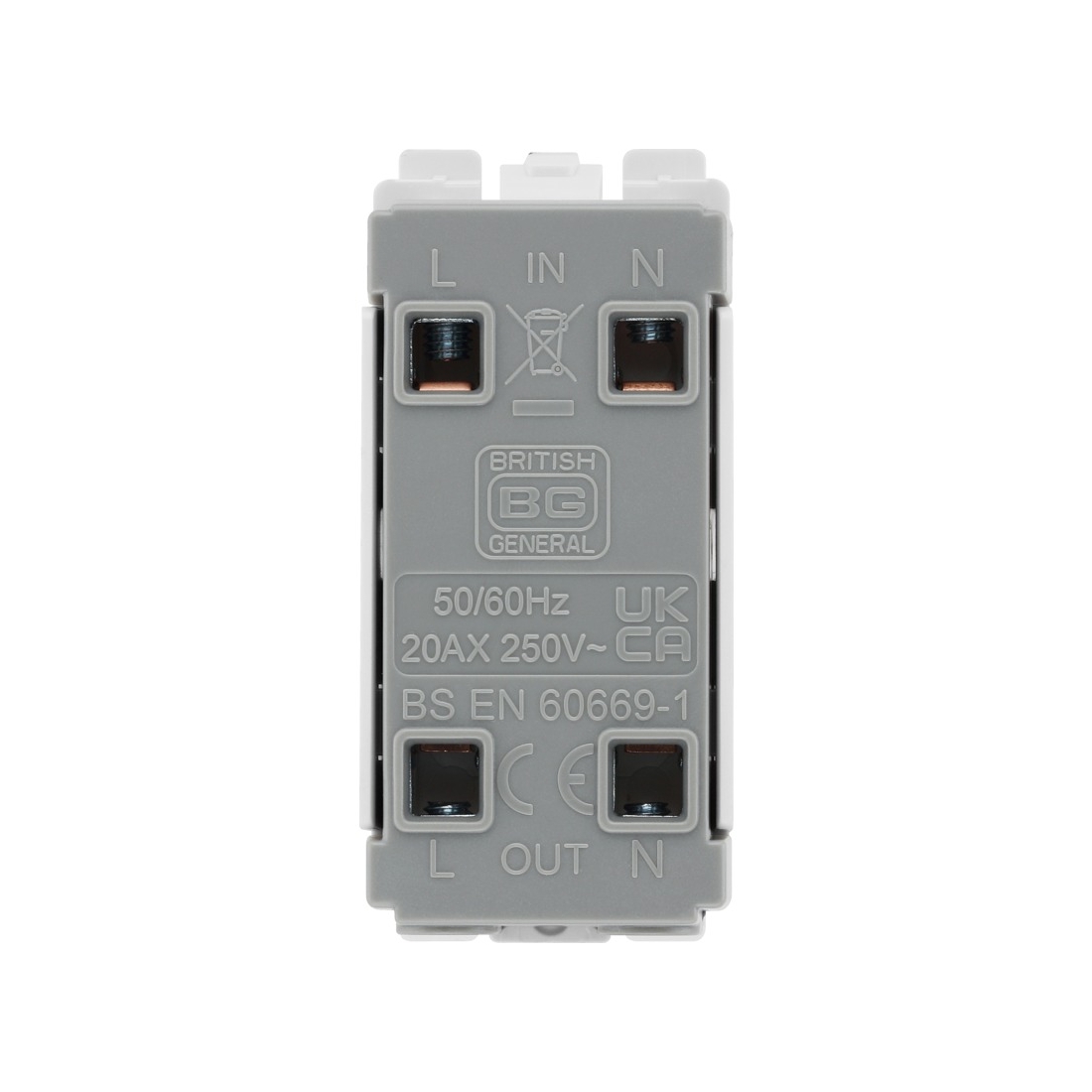

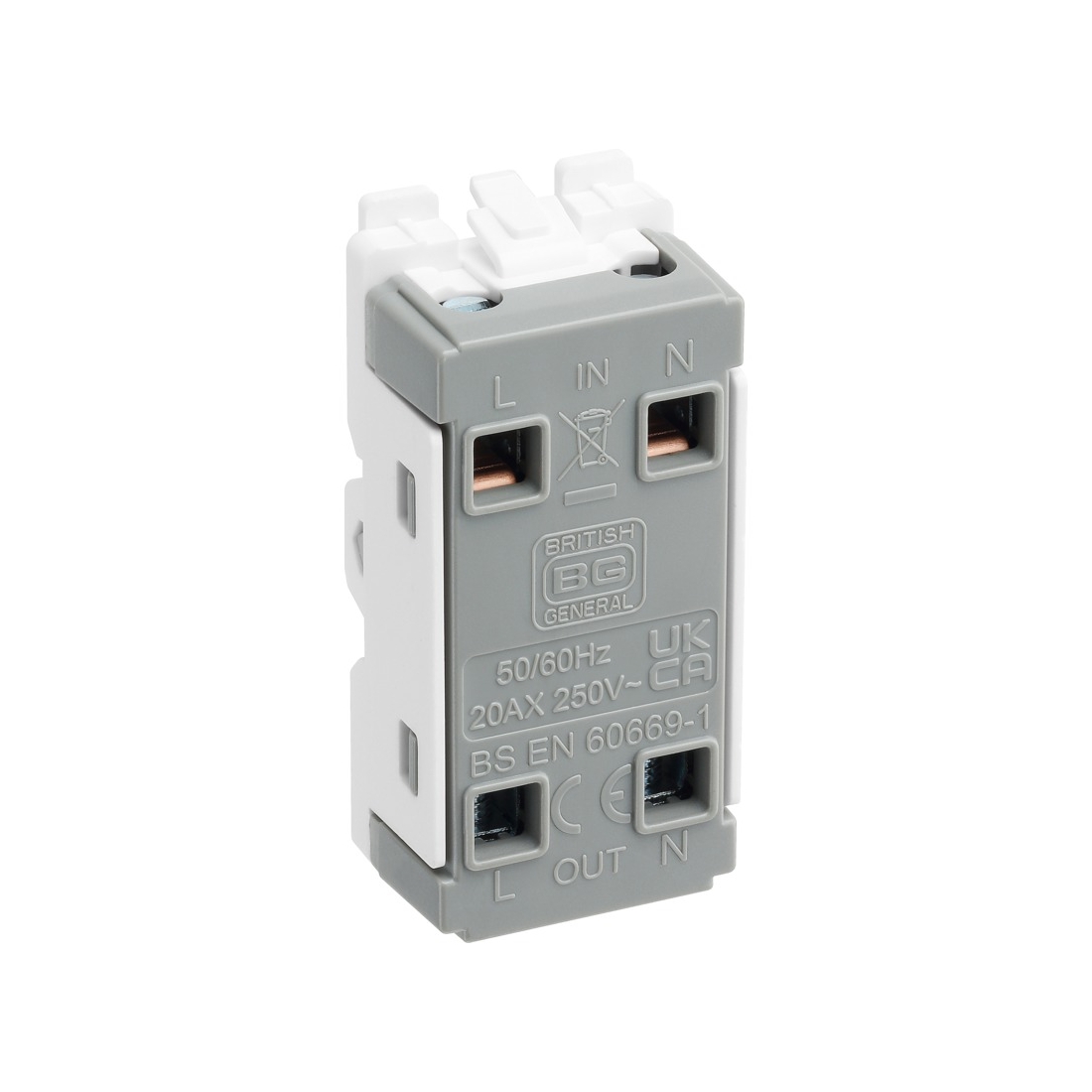

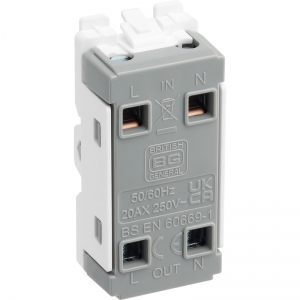

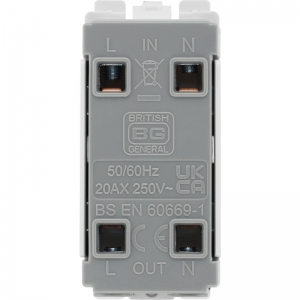

• Clearly marked terminals with captive backed out terminal screws for fast installation
• Terminal Capacity 4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm²
• Minimum mounting box depth 25mm
• Standards: BS EN 60669-2-1
• Dimensions: Height: 54mm | Width: 25mm

BG Nexus Grid Range Overview

The Nexus Grid range consisting of interchangeable switches, dimmers and fused connection units. is ideal for domestic, commercial and industrial applications. It allows the creation of an infinite number of custom configurations and finishes.

Designed to be easy to install with a cantilever module to frame installation and interchangeable rockers to provide total design flexibility.
