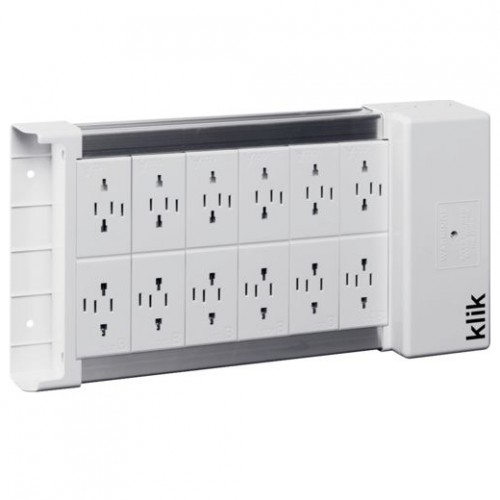

Hager KLDS12 Klik White 12 Way Lighting Distribution Box 6A Width: 438mm | Height: 222mm | Depth: 73mm

Hager KLDS12 Description

The Hager KLDS12 Klik is a 12 way 6A marshalling lighting distribution box brings plug-in convenience and versatility for lighting. It is a unique modular plug and socket interface that provides simultaneous mechanical and electrical connection in one click-in action.

Speeds up a previously very time consuming job by making it extremely simple to connect a large amount of luminaires to one central power hub. Klik KLDS eliminates the need for on-site wiring of individual fittings in large commercial or industrial projects.

Used in conjunction with 3 and 4 pin Klik plugs, luminaires can be connected in seconds, in absolute safety, without circuit isolation. All live contacts are inaccessible and the earthing connection is made before any other.

The KLDS12 marshalling box now has the capacity for dual circuit switching. Supplied as a single circuit, simply removing the link converts KLDS into two separate circuits. These circuits can be controlled via wall switch or occupancy sensor. The main terminals are rated at 16A and each socket outlet is rated at 6A each. The flexible conductor terminals are rated at 10A.

The non wander design prevents disconnection of the plug from its socket by vibration or snatch withdrawals. Strong load grips provide support for luminaires up to 10kg, so all types and sizes of luminaires can be safely used.

Suitable for hanging from the ceiling suspension system in a position central to the luminaires. Compact dimensions allow for installation in confined ceiling voids. The terminal cover slides off from the front facilitating KLDS usage in confined spaces. KLDS can be fixed direct to ceiling or wall with 8 screws.

KLDS12 exceeds the relevant British Standard requirements and enables compliance with IEE Wiring Regulations and Safety Regulations.

Hager KLDS12 Features

• Hager KLDS12 white 12 way marshalling lighting distribution box
• Finish: White
• Constructed from robust aluminium extruded body
• Number of lighting outlets: 12
• Socket outlets accept either Klik lighting 3 pin or 4 pin plugs or Klik pre-wired leads
• All socket outlets factory connected and tested
• Simple and quick to install
• Easy maintenance
• Dual switch capability
• Can be separated into two independently switched circuits
• Circuits can be controlled via wall switch or occupancy sensor
• Main terminal rating: 16A
• Socket outlet rating: 6A
• Separate terminals for flexible conductors, rating 10A
• Main terminal capacity: 5x4mm²
• Flexible conducter terminal capacity: 1x1mm²
• Suspended by steel fasteners on rod, fixed direct to lighting trunking or directly to ceiling or wall with No.8 screws
• Self-retained cover screws
• UL 94 V0
• Complies with BS 5733:2010
• Dimensions: Width: 438mm | Height: 222mm | Depth: 73mm
