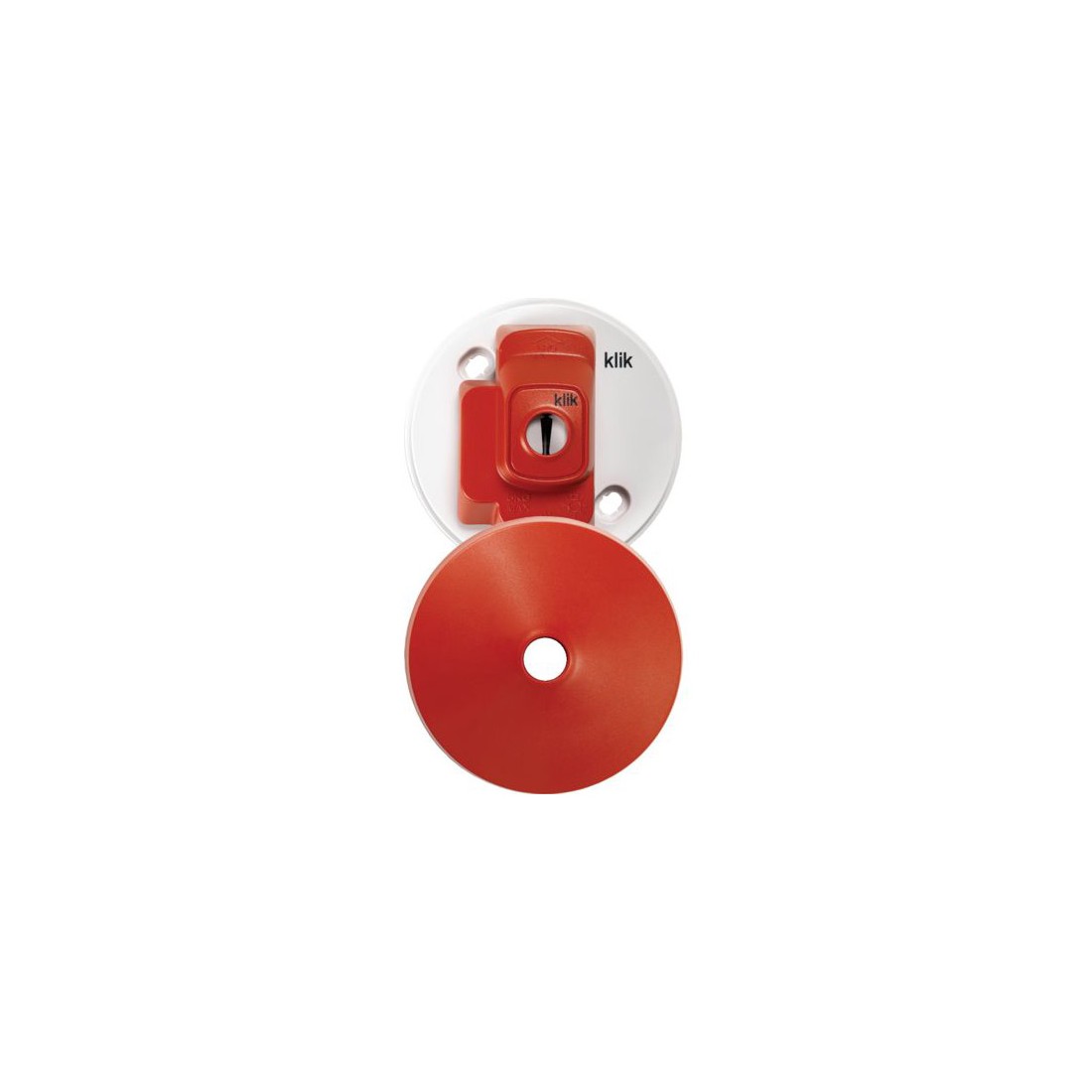

Hager CR64AX/R Klik Red 4 Pin Plug-In Ceiling Rose & Cover 6A Dia Ø: 74mm | Depth: 44mm

Hager CR64AX/R Description

The Hager CR64AX/R Klik is a 6A plug-in ceiling rose with red cover that is typically used in emergency lighting to offer a pluggable connection for luminaires. The luminaire can be connected and disconnected under load for replacement or repair at ground level.

The four contact connector is for special circuit wiring applications enabling a second supply or special connection to be made. Perfect for emergency lighting and can play an important role in energy management systems.

Mechanical and electrical connection is made in one "click-in" action providing a simple time saving and safe installation. Its designed for an on load isolation which allows individual light fittings to be removed for maintenance without affecting other fittings on the circuit. The ease of connection greatly reduces on site installation and maintenance costs.

CR64AX/R is a ceiling rose only without flex allowing you to add your own specific length of cable. CR64AX ceiling roses are also available as standard complete with different lengths of PVC and LSF flexible cable.

Ideal for use in commercial properties, hospitals, schools and leisure facilities.

Hager CR64AX/R Features

• Klik CR64AX/R red 4 pin 6A plug in ceiling rose and cover
• 6 Amp 230V ac
• Red finish
• Ideal for emergency lighting, playing an important role in the energy management systems
• Fittings can be disconnected safely in seconds for replacement or repair at ground level
• CR64AX/R Ceiling Rose consists of P64AX/R Plug, S64AX Socket and A1/R Cover
• Sockets have 5 terminations: line, neutral, earth, auxiliary and loop-in
• Plugs have 4 terminations: line, neutral, earth and auxiliary
• The fourth auxiliary contact allows alternative switching and supply options.
• Mechanical and electrical connection made in one "click-in" action
• Reduces on-site installation time and cost
• Provides loop-in terminal bank wiring within integral surface mounting socket base
• Base terminals accepts 2x4mm² conductor
• Fixing: 50.8mm standard Diagonal (BESA)
• Static loading 10kg except when load suspended by flexible cord: 5kg max
• Inflammability: UL 94 V0
• Complies with BS 6972 and BS 5733:2010
• Dimensions: Diameter Ø: 74mm | Depth 44mm
