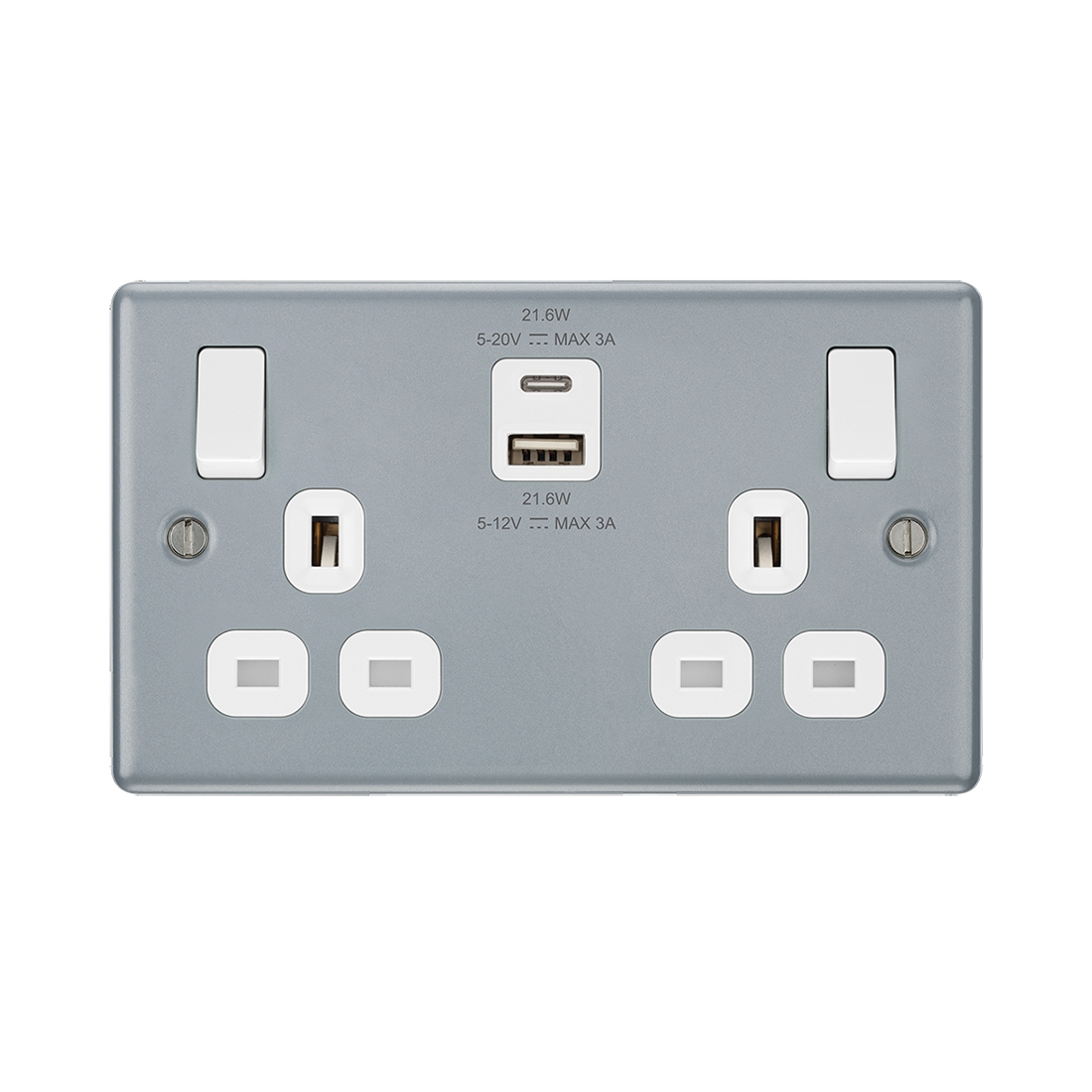

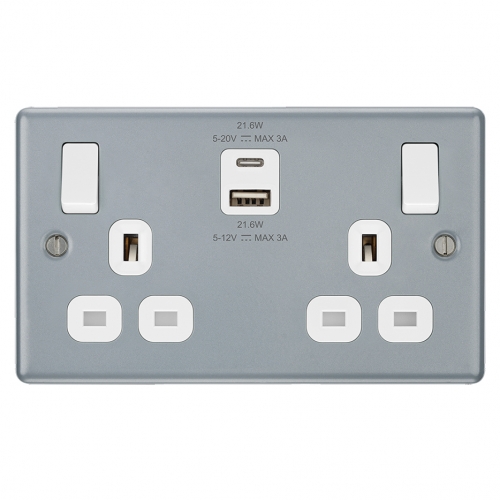

BG Electrical MC522UAC22 Metalclad 2 Gang Single Pole 13A Switched Socket With 1 x Type A + 1 x Type C USB Charging Sockets With Mounting Box 22W

BG Electrical MC522UAC22 Description

The BG Electrical MC522UAC22 Metalclad 2 Gang Single Pole 13A Switched Socket with USB Charging is a durable and versatile wiring accessory designed to meet the demands of modern electrical installations. Combining two standard 13A switched socket outlets with integrated USB-A and USB-C charging ports, it allows users to power electrical equipment while simultaneously charging smartphones, tablets and other USB-powered devices without the need for additional adaptors.

Part of BG Electrical's trusted Metal Clad range, the MC522UAC22 is manufactured from heavy-duty steel with a tough powder-coated finish, making it suitable for workshops, garages, commercial premises, educational facilities, offices and industrial environments. The integrated 22W USB charger features both Type A and Type C outputs, providing compatibility with a wide range of modern devices and supporting faster, more efficient charging.

The socket incorporates BG's sleek angled design with colour-coded terminals and captive fixing screws to simplify installation. The supplied surface mounting box enables quick installation in exposed wiring applications, making it an ideal solution for refurbishment projects and new installations alike.

Combining robust construction, convenient USB charging and reliable power distribution, the BG MC522UAC22 offers a practical and future-ready solution for environments where durability and functionality are essential.

BG Electrical MC522UAC22 Features

• 2 Gang 13A switched socket outlets
• Integrated 22W USB charger
• 1 x USB Type-A port
• 1 x USB Type-C port
• Fast charging capability for smartphones, tablets and USB-powered devices
• USB output automatically adjusts to connected device requirements
• Single pole switching

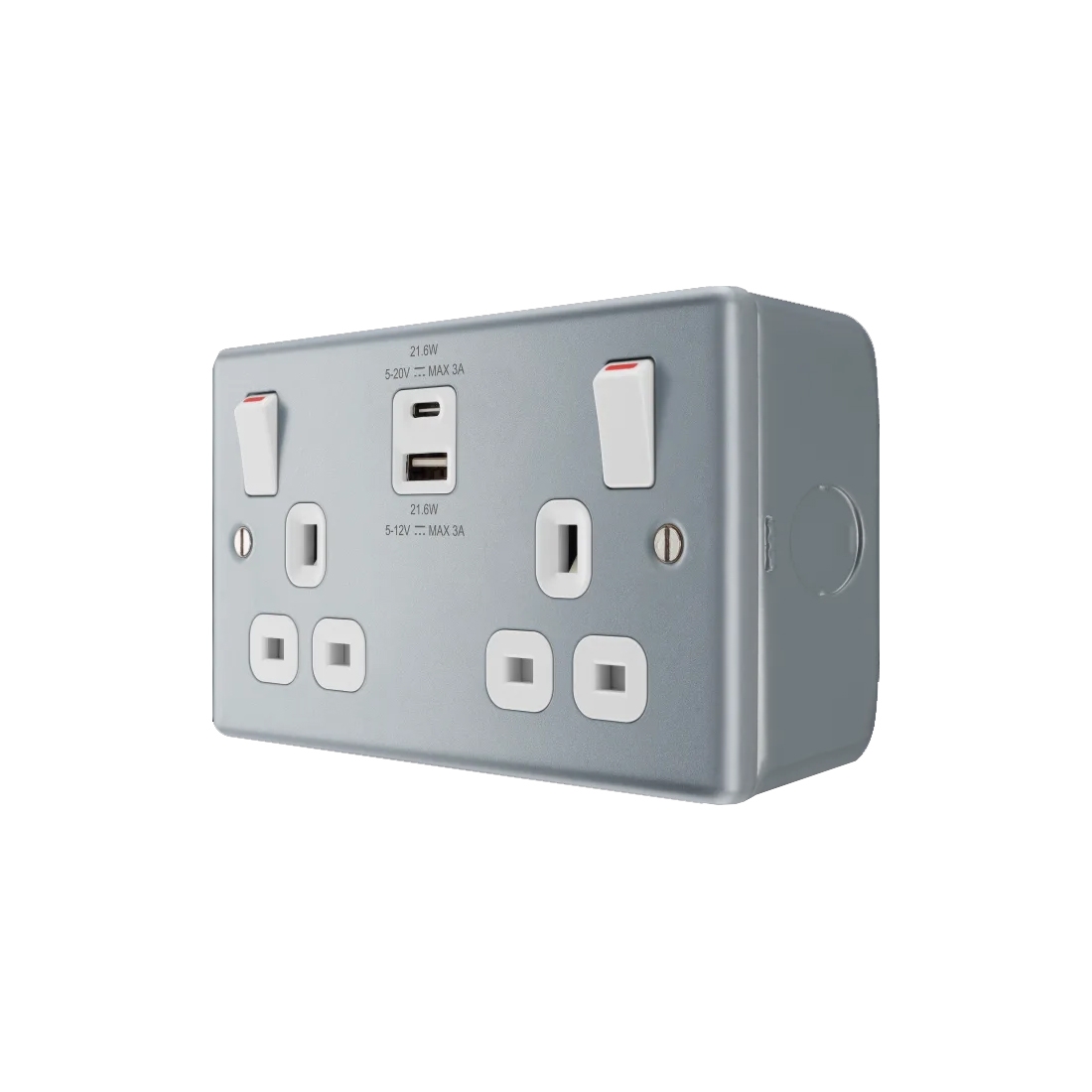

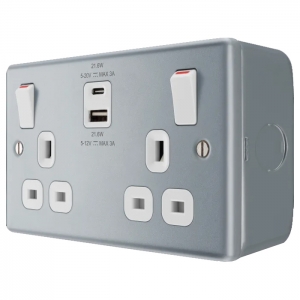

• Supplied complete with surface mounting box
• Heavy-duty metal clad construction
• Durable powder-coated finish
• Ideal for commercial, industrial and residential applications
• Suitable for workshops, garages, offices, schools and utility rooms

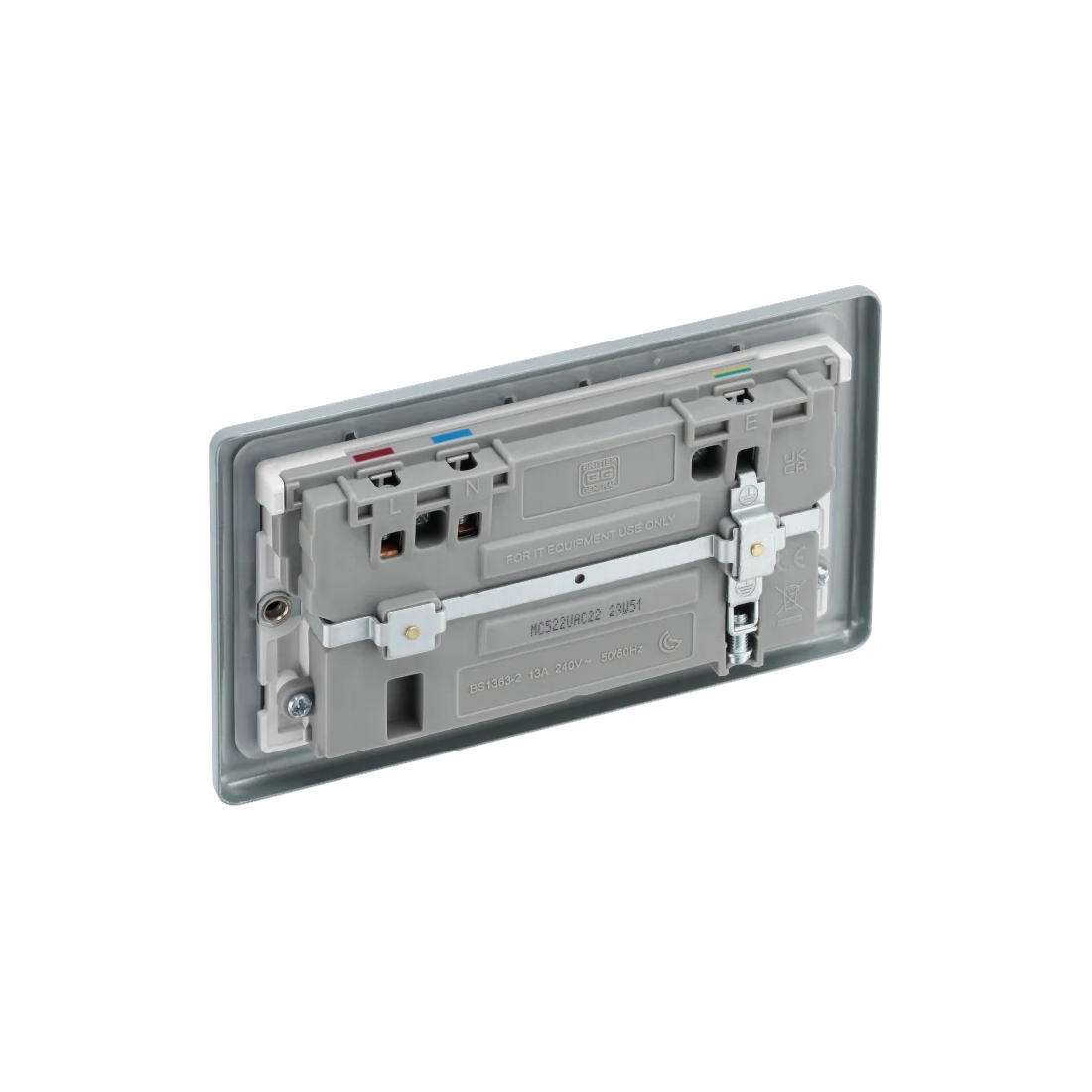

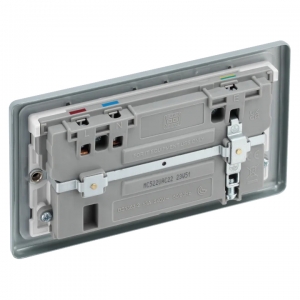

• Angled in-line colour-coded terminals for easier installation
• Captive terminal and faceplate screws
• Twin earth terminals fitted as standard
• Manufactured to BS 1363-2 requirements
• Rated socket current: 13A
• Rated voltage: 230V AC
• USB charging power: 22W maximum
• USB port configuration: 1 x Type A + 1 x Type C
• Surface mounting design
• Robust steel construction for enhanced durability
• Modern metal clad finish
• Designed for long-term reliability
• Dimensions: Height 86mm, Width 146mm, Depth (including box) 47mm
• Mounting box depth: 25mm
