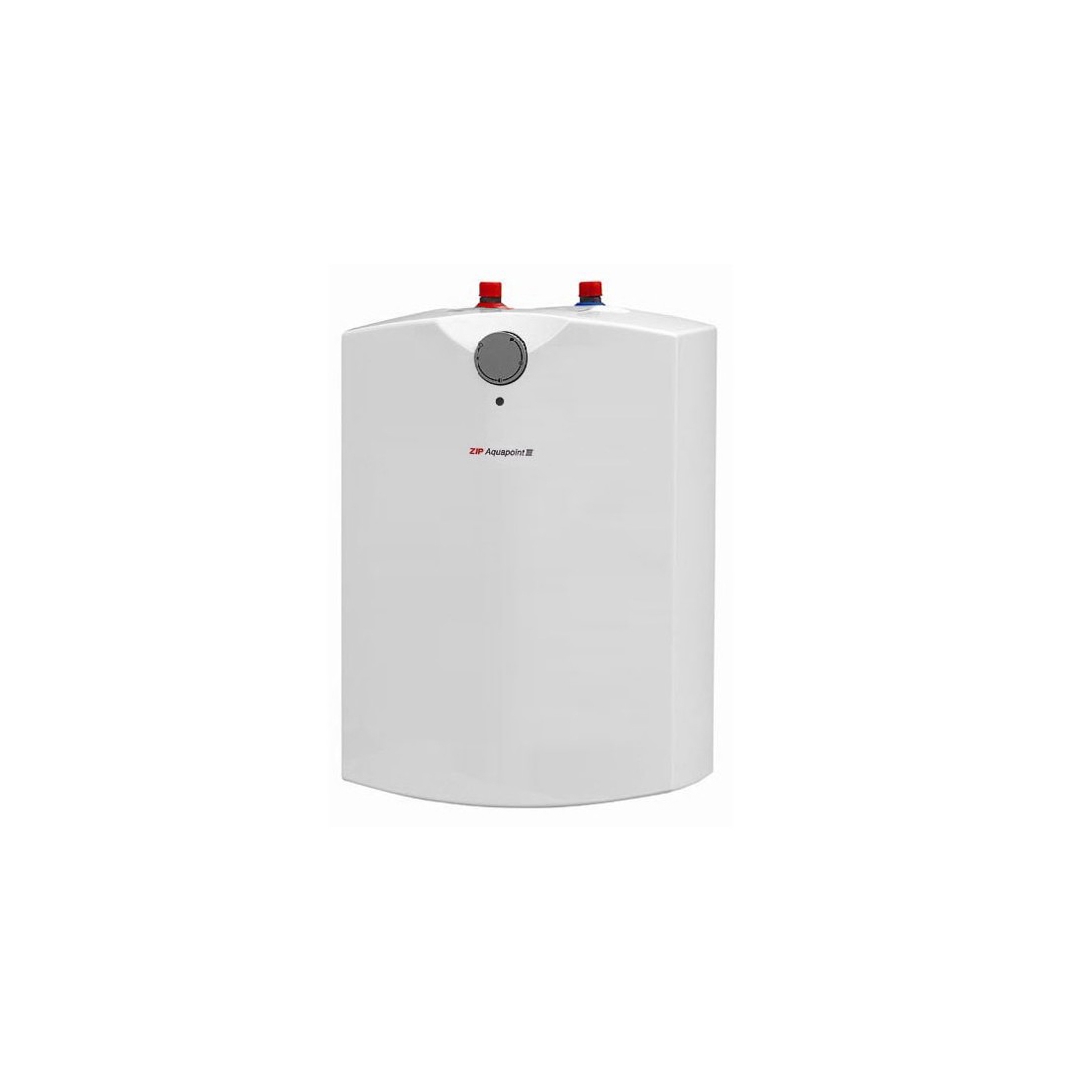

Zip AP3/15 Aquapoint III White Plastic Unvented Undersink Water Heater 15Ltr 2kW 240V

Zip AP3/15 Aquapoint III is an unvented undersink water heater with 15 litre storage capacity to serve single or multiple hot water outlets. It has a glass lined steel storage tank tested to 12 bar and a sacrificial anode is fitted for protection against aggressive water conditions. All Zip Aquapoint III water heaters come with all the necessary accessories and factory fitted P&T valve. Zip Aquapoint III water heaters are a favourite choice of supplying hot water within a domestic or commercial environment.

Order code: AP3/15

Manufacturer: Zip Water Heaters

GTIN: 5036764323036

£ 257.53 incl. VAT
£ 214.61 excl. VAT

Trade Price: £ 345.30
You SAVE
£ 130.69 or 38%

Add to compare

Normally despatched
within 1-2 working days

Description
Technical Info

Zip Aquapoint III AP3/15 Description

Zip AP3/15 Aquapoint III is a 15 litre unvented undersink water heater suitable for serving single or multiple hot water outlets. It has a glass lined steel storage tank tested to 12 bar and a sacrificial anode is fitted for protection against aggressive water conditions. The tank comes equipped with a 2.0 kW heating element, guaranteeing a steady and efficient hot water supply.

Zip Aquapoint III AP3/15 has external temperature control with frost protection and is used with conventional taps or mixers. Safety features include a sacrificial anode, an adjustable thermostat with a range up to 75ºC, a resettable over-temperature safety cut-out, and high-density CFC-free polyurethane foam insulation.

Zip Aquapoint III 15 Litre Water Heater is supplied with an installation kit complete with wall mounting bracket.

Zip AP3/15 Water Heaters Features

Capacity (L): 15
Power rating (kW): 2.0
Voltage Rating (V): 230
Dimensions (mm): W350 D310 H480
Weight (KG): 10
Colour: white
Control: electronic
Inlet pipe 1/2"bsp
Warranty: 1 Year
Heating element: Embedded rod type
Thermostat: Capillary type adjustable up to 7ºC to 75ºC.
Water tank: 1.8mm glass enamelled, steel tested to 12 bar, with a working pressure of 3.5-4 bar
Case: High impact and corrosion resistant white plastic.
Insulation: High density, CFC-free polyurethane foam.
IP Rating: IP24
Approvals: WRAS approved and CE endorsed

Safety features

manually resettable thermal cutout set to 85ºC +/– 3ºC.
expansion relief valve (supplied) set at 6 bar.
protected against frost whilst power is on.
sacrificial anode for added protection against corrosion for element and tank – must be checked regularly (6 months) and replaced where necessary as gradual erosion will occur.
In extreme cases local water conditions can cause rapid erosion of the anode resulting in particles being deposited as a residue.
The Aquapoint should not be used where water quality is critical.

Warranty

One-year on site parts and labour

Installation

Separate models available for oversink and undersink installation.
All models can be wall mounted.
Undersink units can be installed unsupported on the floor if required.
All models can supply one outlet or multiple outlets, subject to capacity, without the need for special taps.

Plumbing

Water connections ½" / 15mm BSP.
Minimum recommended water pressure 1 bar.
Pressure relief valve (supplied) set at 6 bar.
Pressure and temperature relief valve requires plumbing to waste in accordance with water byelaws.
Should be installed only by a suitably experienced installer of unvented electric storage water heaters.
Oversink and undersink models not interchangeable

Electrical

To be wired to a double pole fused spur, minimum break rating 13 amps.
Installation must comply with current IEE regulations.
Supplied with 1 metre of pre-wired cable.

Caution

Variable temperature water heaters should be set only in strict compliance with regulations governing the temperature of stored and dispensed hot water.
