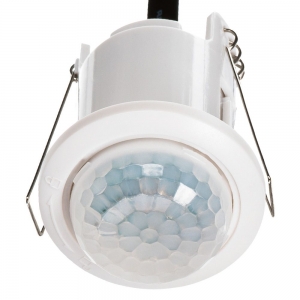

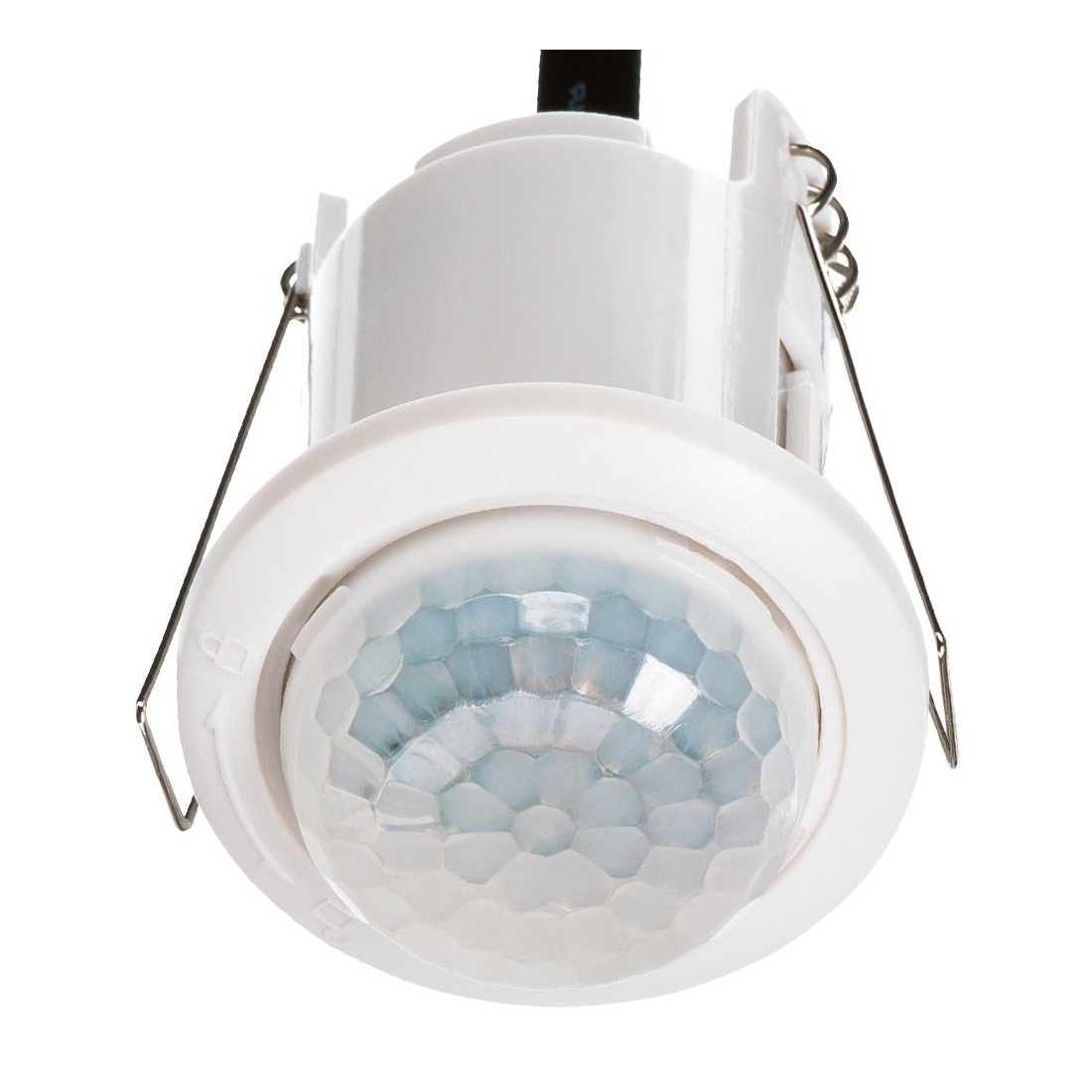

Timeguard PDFMMINIL Night Eye White Round Linkable Flush Mounting 360° Mini Master PIR Presence Detector IP40 230V Detection Range: 8m | 30sec - 30min Adjustable Timing
Timeguard PDFMMINIL 360° flush ceiling mounting linkable mini master PIR presence detector is designed for corridor and multi-zone use. Features a mini (47mm diameter) twist & lock design for easy access and is linkable to the PDFMMINILS pre-wired RJ11 plug-in slave units for quick installation.
within 3-4 working days
Timeguard PDFMMINIL Description
Timeguard PDFMMINIL 360° flush ceiling mounting linkable mini master PIR presence detector is designed for corridor and multi-zone use.
Features a mini (47mm diameter) twist & lock design for easy access and is linkable to the PDFMMINILS pre-wired RJ11 plug-in slave units for quick installation. Up to 5 slaves can be connected to one master unit.
The PIR sensor has a 360° detection, with 3m for presence detection and 8m for motion detecting. The sensor allows adjustments for the time the light is on as well as the light level. The light level can be adjusted from 5 up to 1000 LUX, with time form 30 seconds up to 30 minutes, depending entirely on requirements and preference. A termination box for ease of wiring and a masking kit is also included.
IP40 rated suitable for internal use only.
Timeguard PDFMMINIL Features
- Designed for corridor and multi-zone use.
- Mini unobtrusive design (47mm diameter).
- Detection: 360°.
- 3 metre presence detection.
- 8 metre motion detection.
- Twist & Lock design for easy access.
- Pre-wired RJ11 plug-in slave units for quick installation.
- Linkable. Up to 5 slaves can be added to 1 master.
- Load: halogen max. 1000W. LED max. 250W.
- LUX adjustment: 5 – 1000 LUX.
- Time adjustment: 30 seconds to 30 minutes (master only).
- Termination box for ease of wiring.
- Masking kit included.
- LED indication.
- IP40 weatherproof rating.
Brand : | Timeguard |
Part No : | PDFMMINIL |
GTIN : | 5012483014035 |
Colour : | Black |
Voltage Rating : | 230V |
IP Rating : | IP40 |
Dimensions : | (Dia)47 mm x (D)64 mm |
Mounting : | Flush Ceiling |
Height : | 175mm |
Width : | 35mm |
Diameter : | 47mm |
Guarantee : | 3 Years |
Depth : | 64mm |
Detection Angle : | 360° |
Detection Range : | 8m |
Cut Out : | 40mm |
Lux Adjustment : | Yes |
Timer Adjustment : | 30 Secs to 30 Mins |
