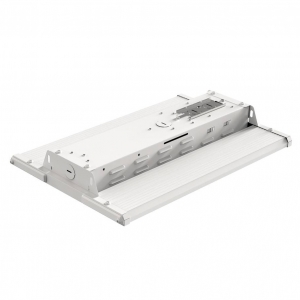

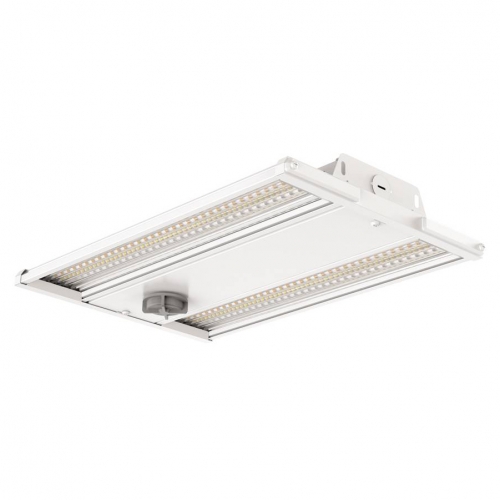

Collingwood Lighting LBO1V RackBay CSP White IP20 60-100W 8700-15000Lm 396mm Wattage & Colour Selectable LED Rectangular Low Bay

Collingwood LBO1V Description

The Collingwood Lighting LBO1V RackBay CSP is a high-performance LED low bay luminaire, designed specifically for warehouse aisles, racking systems, and commercial environments requiring precise, energy-efficient lighting. With selectable wattage options of 60W, 80W, and 100W, and an adjustable lumen output ranging from 8,700 to 15,000 lumens, this fitting provides exceptional flexibility for a wide range of applications.

Featuring switchable colour temperature (3000K / 4000K), the LBO1V allows installers to tailor lighting to suit different environments, from warmer retail spaces to brighter, task-focused industrial areas. Its specialised 110° x 55° beam angle is optimised for racking aisles, delivering targeted, uniform illumination while minimising wasted light.

Engineered for efficiency, the RackBay CSP achieves up to 150 lumens per watt, significantly reducing energy consumption and operating costs. Built with a durable aluminium and polycarbonate body, it features an IP20 rating and IK07 impact resistance, making it ideal for indoor industrial environments.

Designed with installers in mind, the compact and lightweight construction enables quick single-person installation, while multiple mounting options (suspended, surface, or busbar) provide flexibility across different applications. Additional features such as 0–10V dimming, optional PIR/microwave/daylight sensors, and easy-access removable driver ensure efficient operation and maintenance.

With a long LED lifetime of up to 100,000 hours (L70) and a 5-year warranty, the LBO1V offers a reliable, low-maintenance lighting solution for modern commercial and industrial spaces.

Collingwood LBO1V Features

• Wattage selectable: 60W / 80W / 100W
• Light output: 8,700 – 15,000 lumens
• High efficacy: up to 150 lm/W
• Colour temperature selectable: 3000K / 4000K
• Beam angle: 110° x 55° optimised for racking aisles
• IP20 rated – suitable for indoor applications
• IK07 impact resistance for durability
• 0–10V dimmable for energy control
• Compatible with sensors: PIR, microwave, daylight & photocell
• Voltage: 220–240V AC
• CRI: >80 for accurate colour rendering
• LED lifetime: up to 100,000 hours (L70)
• Construction: aluminium & polycarbonate body
• Finish: white
• Mounting options: suspended, surface mount, M10/M20 busbar
• Compact, lightweight design for easy installation
• Removable driver for simplified maintenance
• Length: 396mm
• Width: 241mm
• Height: 65mm
• Electrical Class I
