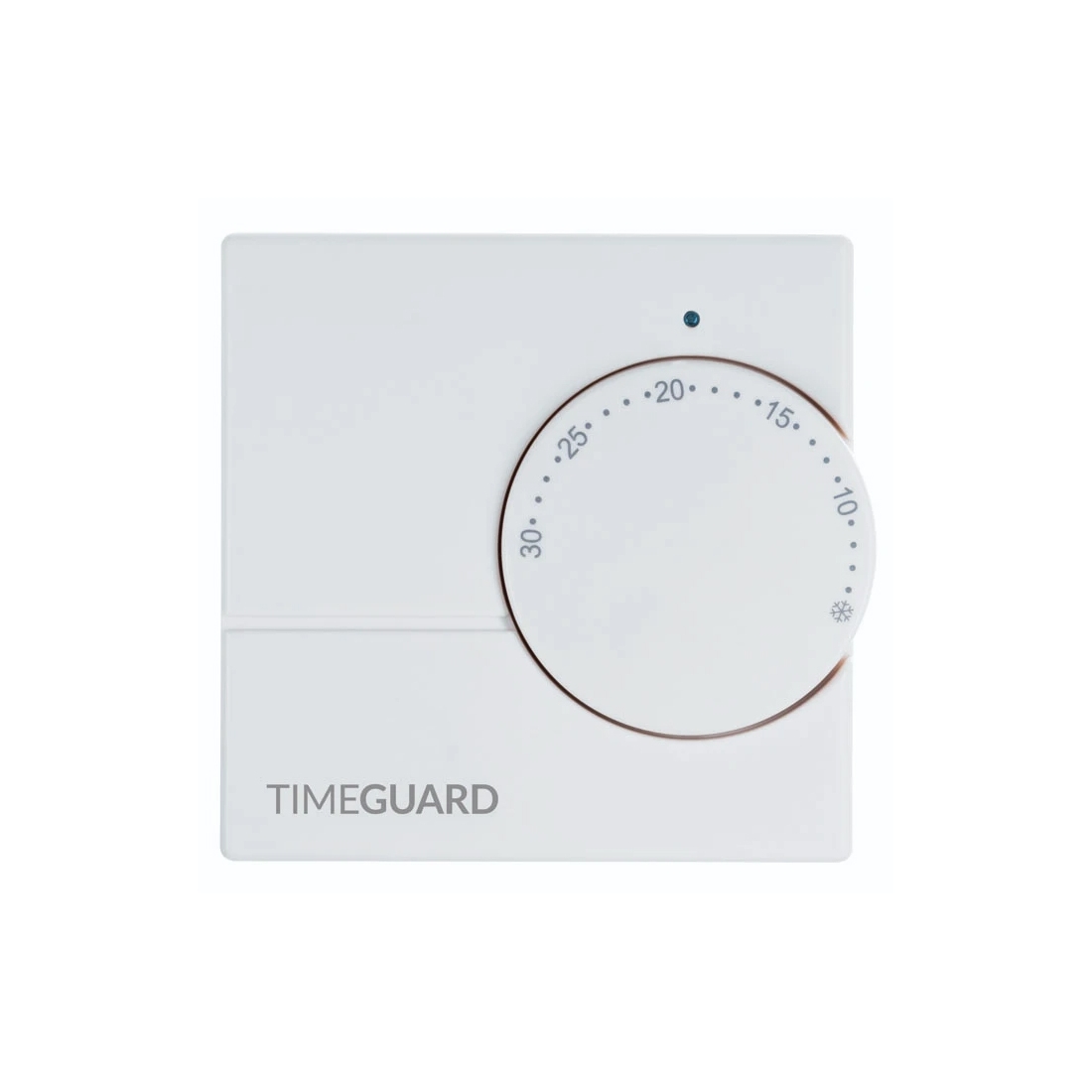

Timeguard TRT030N Programastat+ White Electronic Room Thermostat With Surface Mount Wall Plate 5°C - 30°C 6(2)A 220V - 240V
The Timeguard TRT030N Programastat+ electronic room thermostat has a clearly marked 5°C to 30°C set temperature range dial providing automatic temperature control for all central heating applications.
within 1-2 working days
Timeguard TRT030N Description
The Timeguard TRT030N Programastat+ electronic room thermostat has a clearly marked 5°C to 30°C set temperature range dial providing automatic temperature control for all central heating applications.
Features electronic accuracy to improve system efficiency and help reduce running costs with PID control (which can help to minimise temperature overshoot). It has adjustable temperature swing (using DIP switches) of between 0.5°C and 1°C.
Simple to install 3 wire surface mount design with wall plate included.
Timeguard TRT030N Features
- Easily adjustable dial with clearly marked temperature scale.
- 5°C to 30°C set temperature range.
- Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C.
- PID control.
- Output LED (illuminates on call for heat).
- Switch Type: Single pole, single throw (SPST).
- Surface mount with wall plate included.
- Connection Type: 3 wire.
- Switch Rating: 6(2)A.
Brand : | Timeguard |
Part No : | TRT030N |
GTIN : | 5012483012628 |
Colour : | White |
Current Rating : | 6A |
Voltage Rating : | 230V |
Neon : | Yes |
Dimensions : | (H)86 mm x (W)88 mm x (D)38 mm |
Mounting : | Surface |
Height : | 86mm |
Width : | 88mm |
Guarantee : | 3 Years |
Depth : | 38mm |
Compliance : | CE |
