Hager JK108BG 8 Way Type B 3 Phase Distribution Board With Glazed Door 125A/TP&N

Hager JK108BG Description

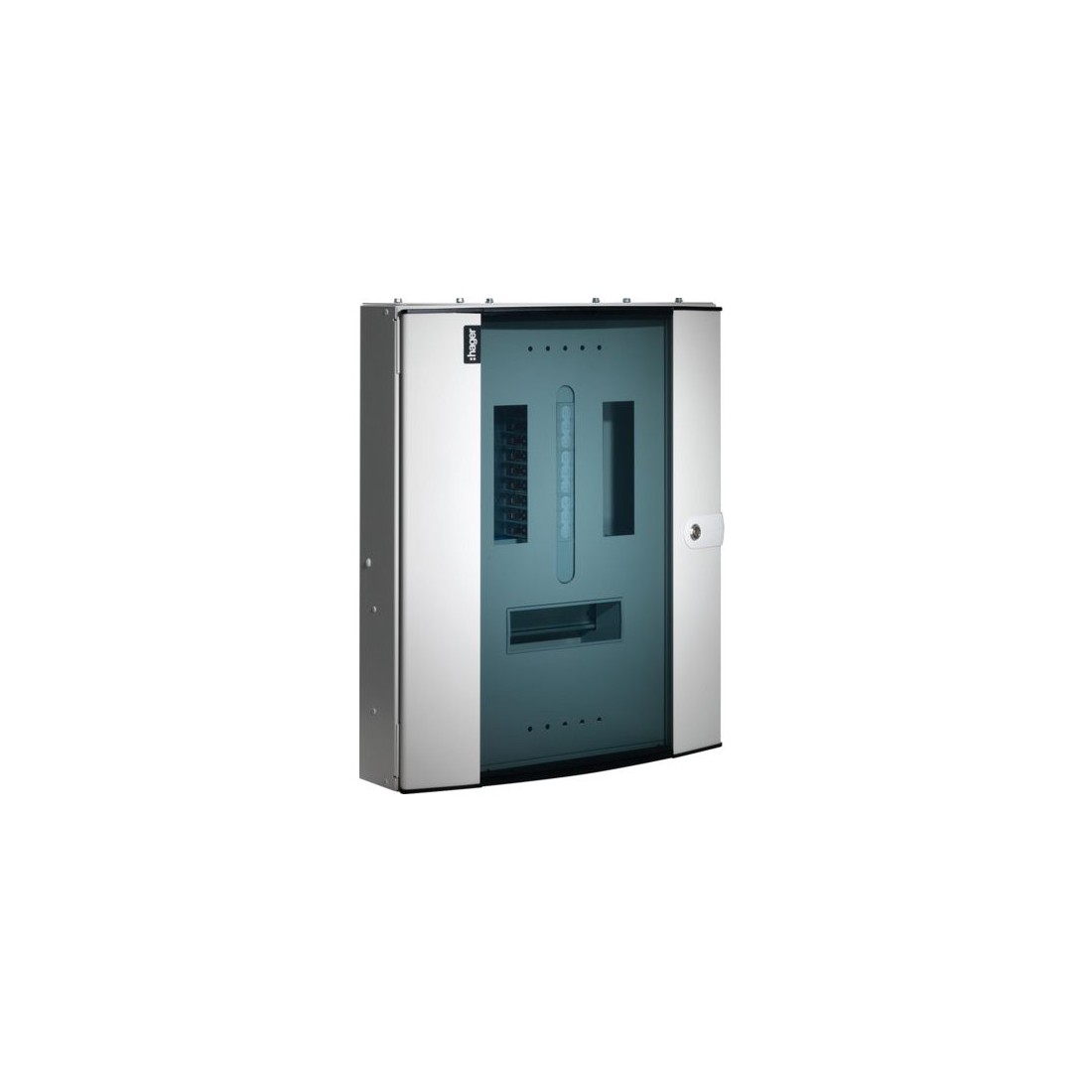

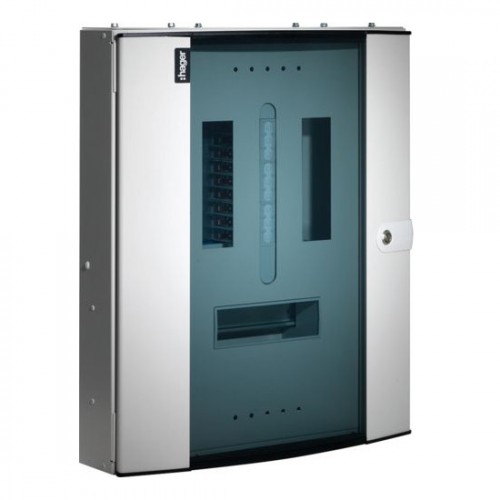

The Hager Invicta3 JK108BG is a metal 8 way three phase TPN 125A type B distribution board supplied with a glazed door designed to help electrical installers meet the challenges of a modern installation.

It offers 8 triple pole ways and a 125A rated busbar. Supplied empty, it requires an incomer kit and outgoing devices to complete a safe and simple installation.

A range of single phase and three phase board protective incomer devices are available including SD, MCCB and RCD incomers. Outgoing devices including MCBs and a wide range of RCBO devices covering 10mA 30mA and 100mA applications in B and C curve. Meter and surge protection options are available to meet application needs.

Invicta3 has quickly become an industry standard for commercial distribution boards. It has many innovative features and the build quality and finish is second to none. The strong board aesthetics with smoked glazed door are ideal for commercial offices, health care and education projects where the board may be sited in public areas.

In short it is an excellent choice for any three phase projects for modern commercial installations.

Hager JK108BG Benefits

Ease of metering
You can install a meter next to the incoming device in the 125A board. Another option is to install a surge protection device.

Simple cable entry
Trunking and cable entry facility means there is no need to use paxolin. Cable protection is built into the endplate cable entry.

Neutral bars
Transparent IP2X neutral cover allows for ease of cable installation. Screws fully turned down for easy and fast cabling.

Earth terminal cabling
Earth terminal bars are mounted offset to neutral terminal bars and angled towards the installer for easy cable installation. The screws are fully turned down for simple and fast cabling.

Energy saving
In addition, DIN rail mounted control devices such as time switches, lighting dimmers and twilight switches are becoming increasingly popular. On a more complex level many building automation systems also operate by controlling the final circuits. Invicta3 meets these needs.

Hager JK108BG Features

• Hager JK108G three phase TPN three phase distribution board
• Surface mounted steel enclosure
• Powder coat grey white RAL 9002
• High aesthetic lockable glazed door for siting in public areas
• Ideal for commercial offices, health care and education projects
• Coin lock as standard, key lock (JK222PK) available to order separately
• IP rating: IP3X
• Busbar Current Rating: 125A
• Busbar Type: fully shrouded copper rated at 25kA short circuit conditional current
• 'Snap-able' busbar means one less tool and speeds up install
• Range of incomer options e.g. switch isolators and RCD isolators (ordered separately)
• Outgoing ways: 8 triple pole outgoing ways
• Up to 8 x TP MCBs or 24 x SP MCBs/RCBOs
• Can accommodate Hager NBN, NCN or NDN single or triple pole MCBs
• Can also accommodate the ADB or ADC range of Hager RCBOs
• Voltage Rating in AC: 230V / 400V
• Transparent IP2X neutral cover allows for ease of cable installation
• Screws fully turned down for easy and fast cabling
• Simple cable entry and optimal cabling space
• Meter and surge protection options to meet application needs
• A meter may be installed next to the incoming device
• Metering options provide a scalable solution to energy monitoring
• Unique trunking entry system – no need for paxolin
• Obround system top and bottom enables quick fitting to trunking.
• Edge is curved, ready to bring cables in without the worry of sharp edges.
• Cable protection is built into the endplate cable entry
• Complies with BS EN 60439-3, BS EN 61439-3
• Dimensions: Height: 625mm | Width: 465mm | Depth: 132.5mm
