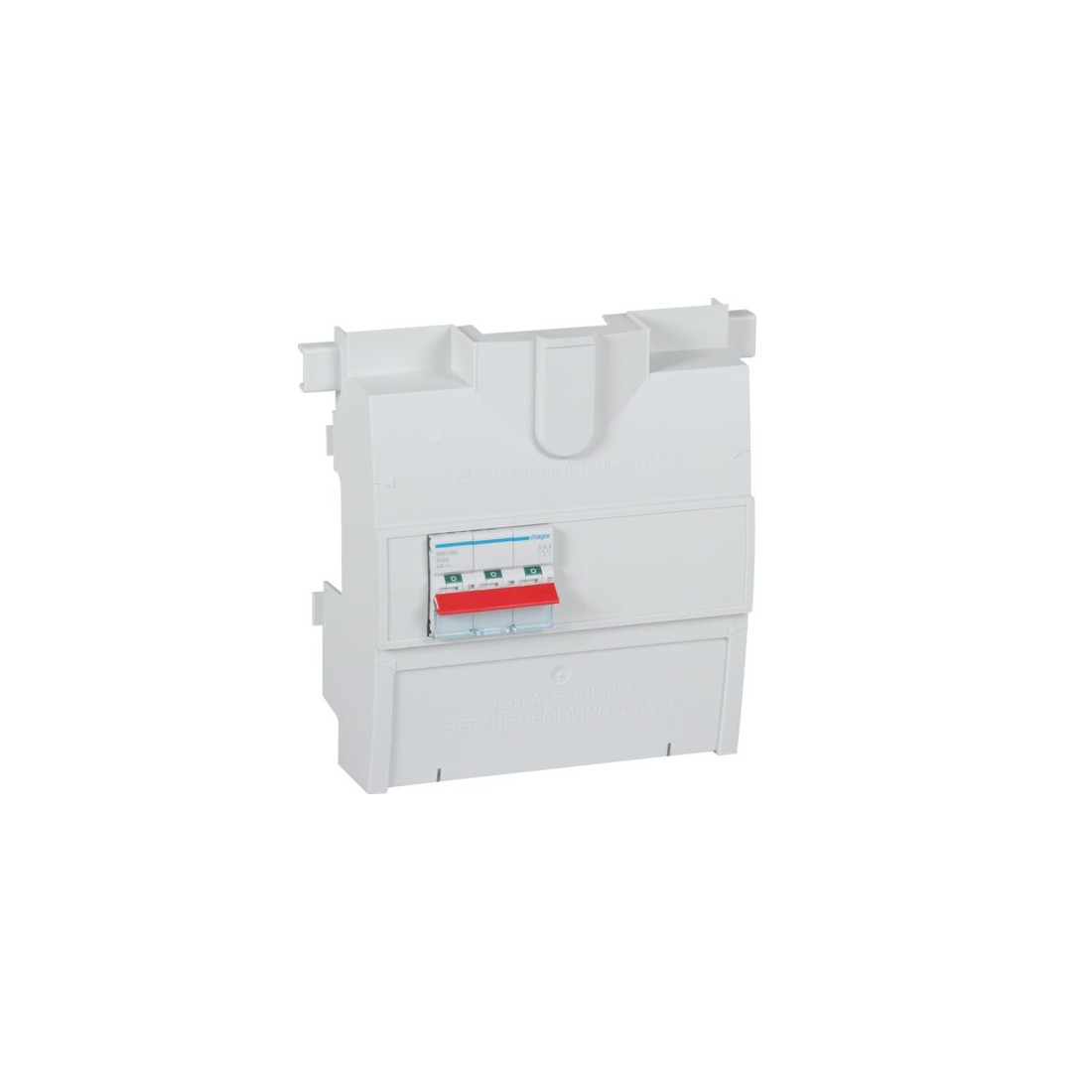

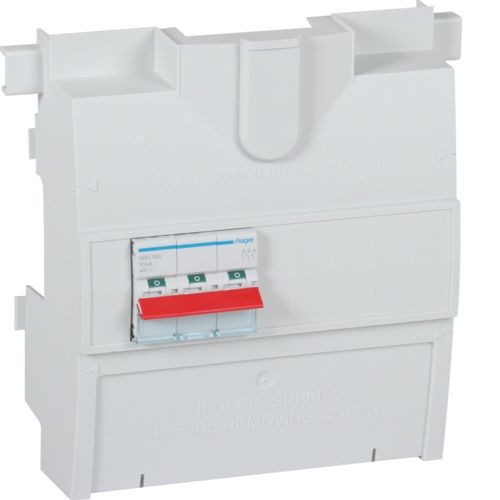

Hager JK11253S 3 Pole Switch Disconnector Incomer Kit TP/125A

Hager JK11253S Description

The Hager Invicta3 JK11253S is 3 module 125A triple pole mains switch isolator kit to be used in conjunction with the Invicta3 distribution boards. Allows complete isolation of all circuits within the distribution board

The kit contains: 1 x terminal shield, 1 x 100A 3 Pole modular switch, 3 x Incomer Links, 3 x M5 carp nuts, 1 x caged terminal & M6 carp nut. Everything needed to install a mains switch in any 125A Invicta3 distribution board.

Hager JK11253S Features

• Hager Invicta3 JK11253S mains switch isolator kit
• 3 module triple pole isolator
• Rating: 125A
• Fits within any 125A Invicta3 type B three phase distribution board
• Contains everything needed to install the mains switch
• 1 x Terminal Shield
  1 x SBN399 125A 3 Pole Modular Switch / Isolator and DIN Rail
  4 x Incomer links
  3 x M5 Carp Nuts
  1 x Caged Terminal and M6 Carp Nut
• Dimensions Switch Isolator: Height: 84mm | Width: 54mm | Depth: 70mm
• Dimensions Incoming Shield: Height: 200mm | Width: 170mm | Depth: 90mm
