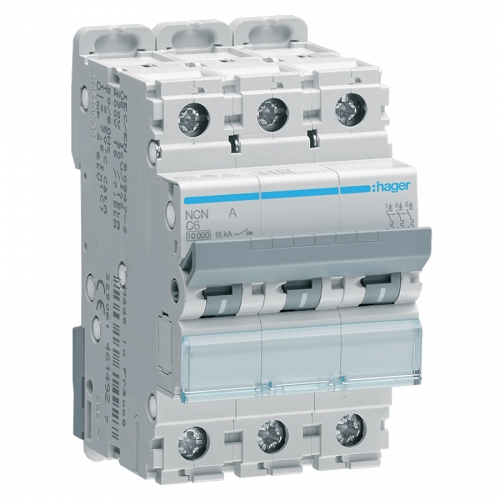

Hager NCN332A 3 Module 32A 10kA Triple Pole Type C Miniature Circuit Breaker MCB For Commercial Installations
The Hager NCN332A is a type C miniature circuit breaker for use with Hager Invicta 3 distribution boards for protection against short circuits and overload current.
Order code: NCN332A
Manufacturer: Hager
GTIN: 3250614615856
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Hager NCN332A Description
The NCN332A allows you to ensure protection of circuits against short circuits, as well as providing protection of circuits against overload current - also gives control and isolation.
With clear identification of the state of isolation by means of the mechanical toggles position (in green).
Fully compliant to BS EN 60898.
Hager NCN332A Features
Neutral position: without neutral
Number of poles: Triple Pole
Number of Modules: 3
Mounting: Din-Rail
Curve: C
Rated operational voltage Ue: 230/400V
Rated current: 32A
Short Circuit Rating: 10kA
Type of supply voltage: AC
Rated insulation voltage: 500V
Rated impulse withstand voltage: 6000V
Outgoing Terminal Capacity: 35mm²
Dimensions (mm): H 83 x W 52.5 x D70
