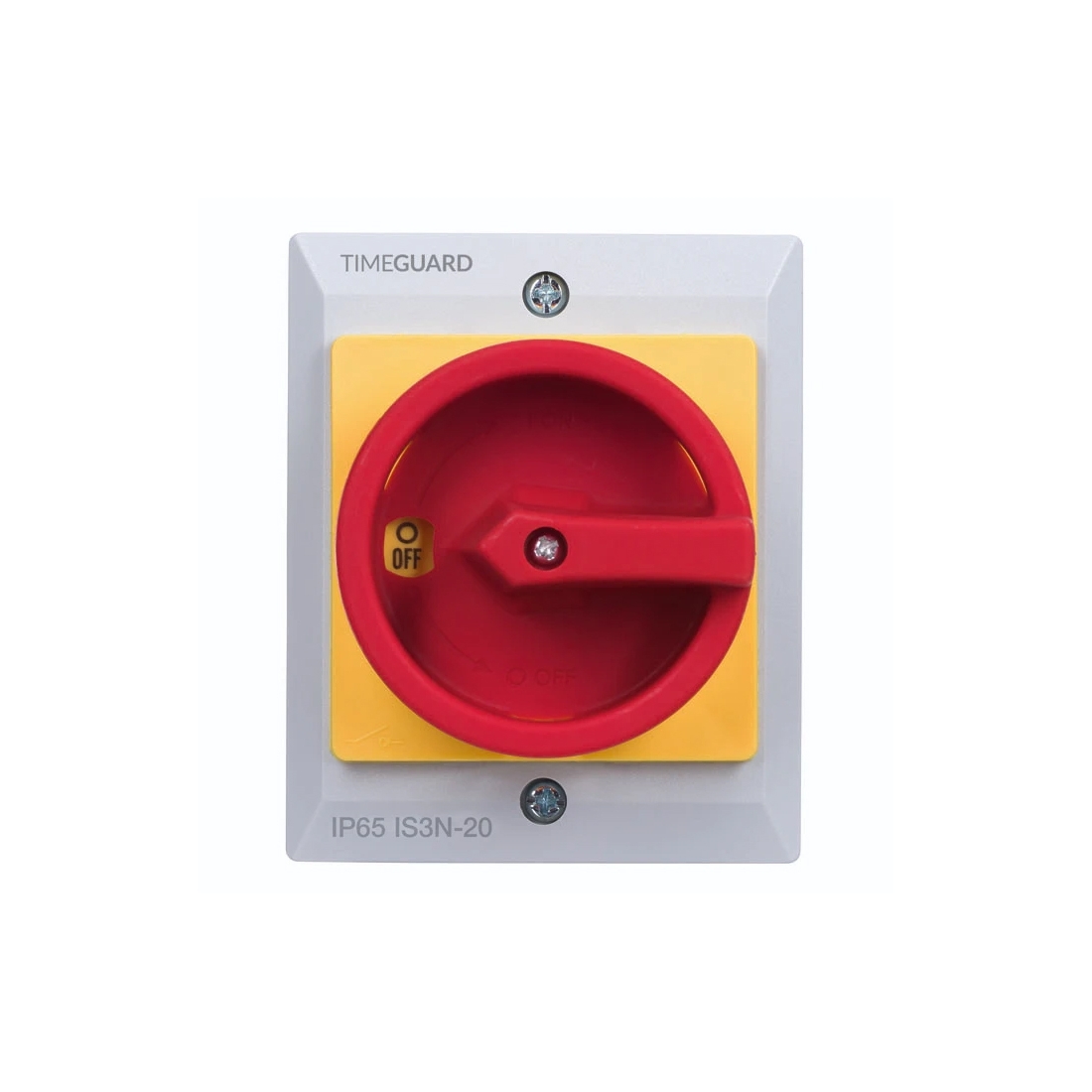

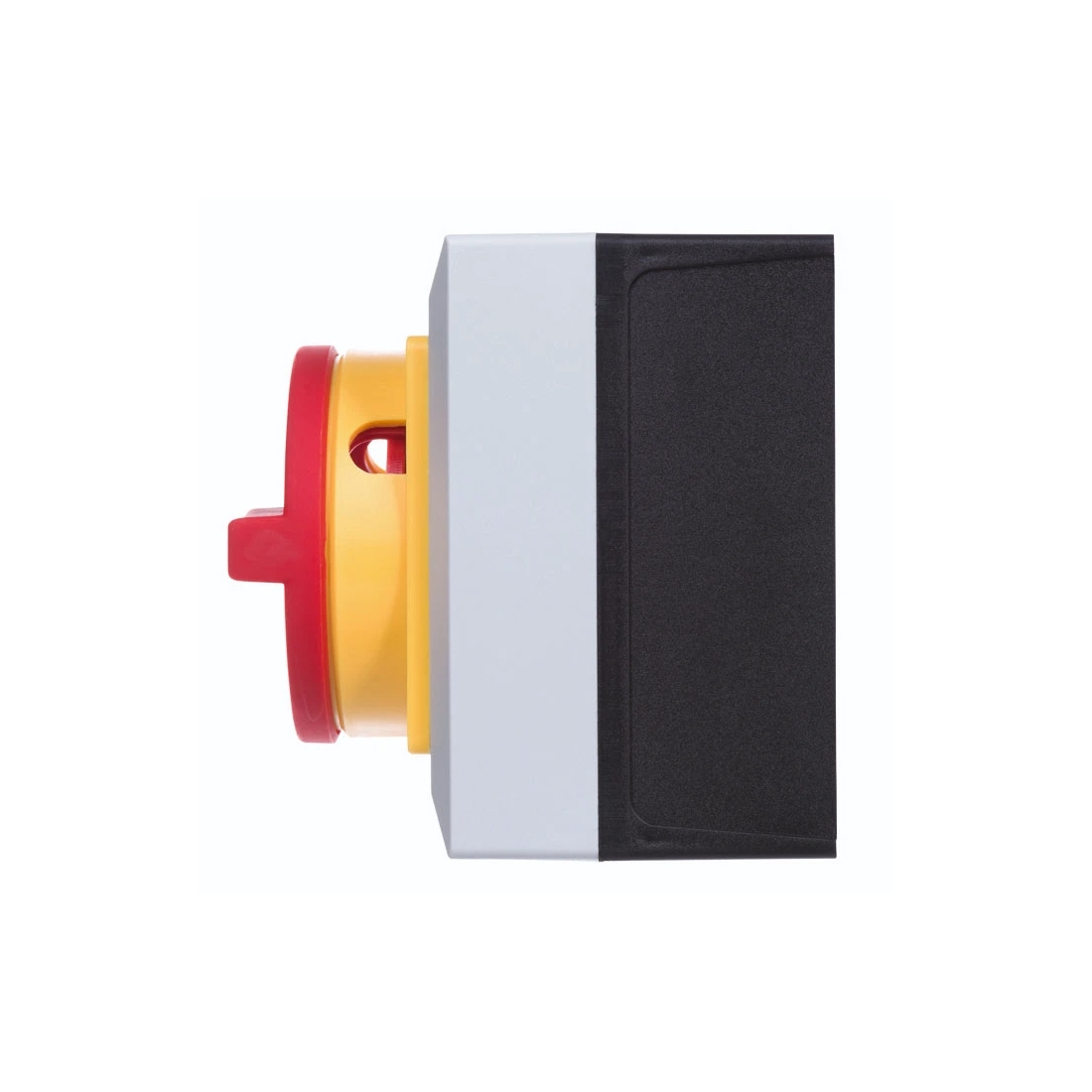

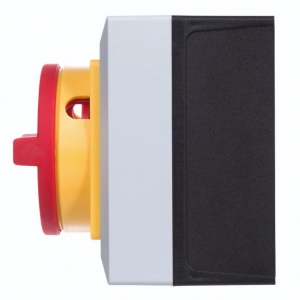

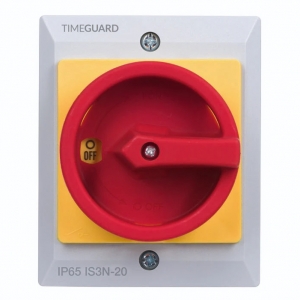

Timeguard IS3N-20 Weathersafe Grey Thermoplastic Triple Pole Enclosed Rotary Isolator Switch With Red Switch Handle IP65 20A 230V Height: 100mm | Width: 80mm | Depth: 100mm
The Timeguard IS3N-20 Weathersafe 20A 230V triple pole enclosed rotary isolator switch is designed with safety in mind, the interlocked front covers can only be removed when in OFF position.
Order code: IS3N-20
Manufacturer: Timeguard
GTIN: 5012483013052
Notify me by email when product is available
Normally despatched
within 5-7 working days
within 5-7 working days
Timeguard IS3N-20 Description
The Timeguard IS3N-20 Weathersafe 20A 230V triple pole enclosed rotary isolator switch is designed with safety in mind, the interlocked front covers can only be removed when in OFF position.
Manufactured from tough, durable thermoplastic with red lockable switch handle that prevents tampering.
IP65 rated delivering for outdoor switching protection.
Timeguard IS3N-20 Features
- Three pole 20A switch.
- Solid Neutral.
- On load switch disconnectors.
- Switch can be removed from DIN rail assembly allowing quick and easy first fix.
- Interlocked front cover can only be removed when in OFF position.
- Lockable switch prevents tampering.
- IP65 weatherproof rating.
- Tough durable thermoplastic construction.
- Cable entry knockouts on enclosures.
You may need Adobe Reader to view some of our downloads.
If you do not already have it installed please click the icon above to install it.
| Brand : | Timeguard |
| Part No : | IS3N-20 |
| GTIN : | 5012483013076 |
| Colour : | White |
| Voltage Rating : | 230V |
| IP Rating : | IP65 |
| Type : | 2 Way |
| Mounting : | Surface |
| Height : | 100mm |
| Width : | 82mm |
| Guarantee : | 3 Years |
| Depth : | 97.5mm |
| Material : | Thermoplastic |
