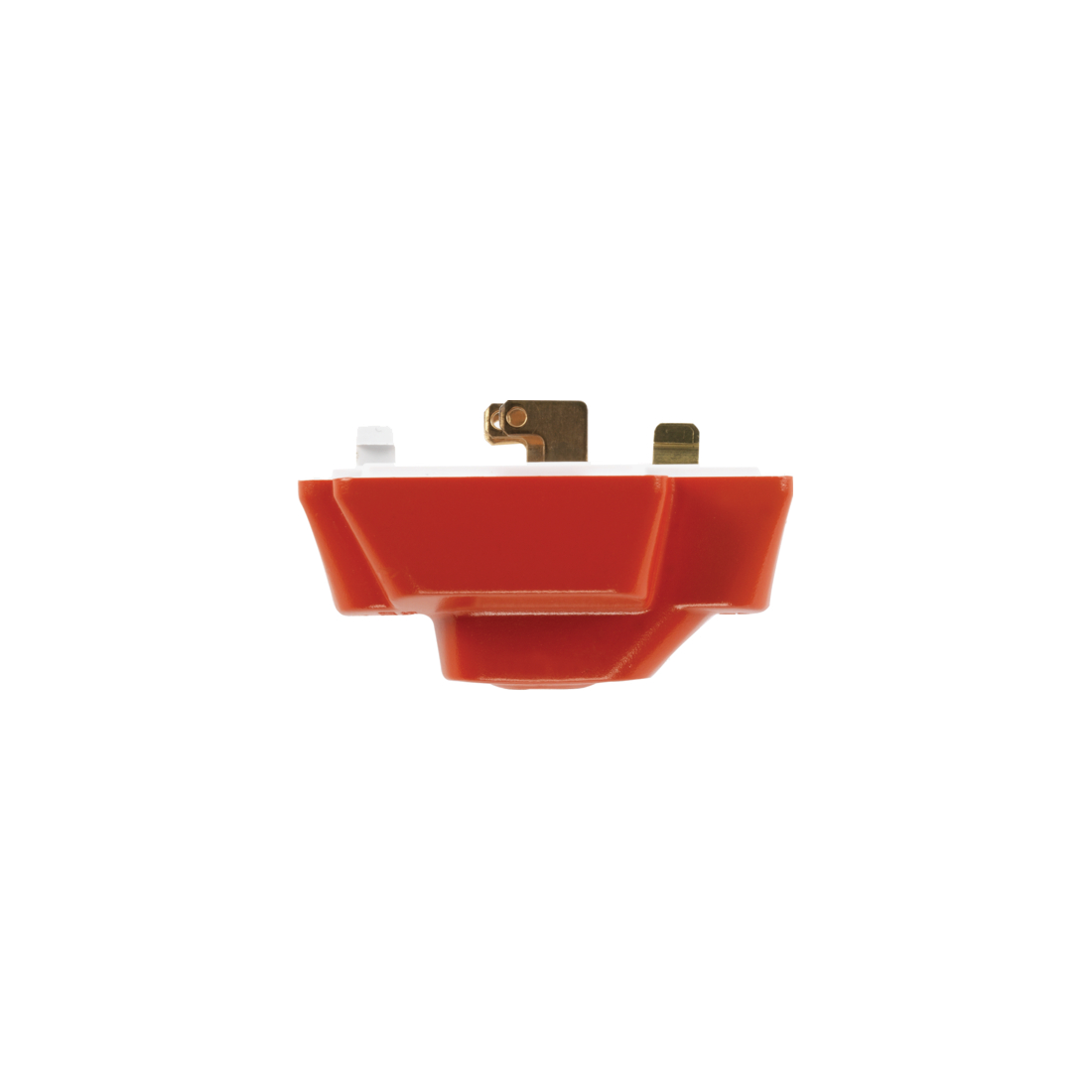

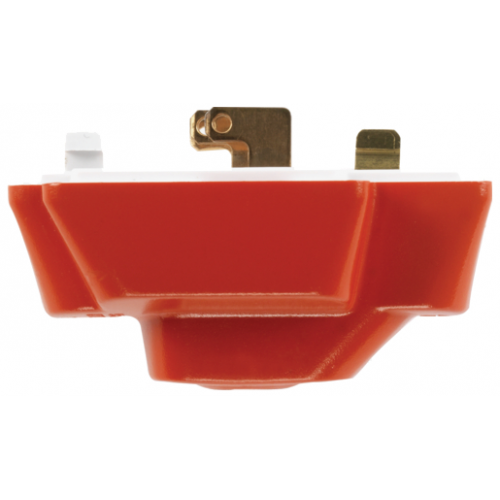

Hager P64AX/R Klik Red 4 Pin Plug With Cord Grip & Cover 6A Height: 57mm | Width: 35mm | Depth: 44mm

Hager P64AX/R Description

The Hager P64AX/R Klik is a 4 pin 6A plug with cord grip and red cover suitable for special circuit wiring applications enabling a second supply or special connection to be made. Perfect for emergency lighting applications and plays an important role in energy management systems.

Only suitable for use with Klik AX sockets and Klik KLDS marshalling lighting distribution boxes. Has 4 terminations: live, neutral, earth and auxiliary, the extra auxiliary contact allows for alternative switching and supply options.

Mechanical and electrical connection are made in one "click-in" action that provides for a simple time saving and safe installation. Designed for an on load isolation which allows individual light fittings to be removed for maintenance without affecting other fittings on the circuit. All live contacts are inaccessible and the earthing connection is made before any other.

Klik plugs and sockets feature solid brass terminals and phosphor bronze contacts for good conductivity. All leads have crimped ends to eliminate breakage, and minimise on-site cable preparation.

The P64AX/R allows for a fast easy connection of numerous types of luminaire and help towards a speedy completion of large lighting installations. Also available as standard complete with different lengths of PVC and LSF flexible cable.

Hager P64AX/R Features

• Hager P64AX/R red 4 pin plug with cord grip and cover
• 6 Amp 230V AC
• Red finish
• Suitable for use with any Klik AX socket and Klik KLDS marshalling lighting distribution boxes
• Connects into a Klik AX socket giving a pluggable connection to luminaires
• Ideal for emergency lighting, playing an important role in the energy management systems
• Mechanical and electrical connection made in one "click-in" action
• Reduces on-site installation time and cost
• Supplied with 4 terminations: live, neutral, earth and auxiliary
• The fourth auxiliary contact allows alternative switching and supply options.
• Base terminals accepts 1 x 1mm² conductor
• Contact Material: Phosphor Bronze
• Plugs must not be fitted on the supply side of any installation, appliance side only
• Static loading 10kg except when load suspended by flexible cord: 5kg max
• Inflammability: UL 94 V0
• Complies with BS 6972 and BS 5733:2010
• Dimensions: Height: 57mm | Width: 35mm | Depth 44mm
